Tabernacle build – day 6

I only had a couple of hours to work this evening, so I took care of some small things. I measured and cut the spacers for the hidden door plate. I applied glue then pin nailed them in place.

Pinning in the spacers

Pinning in the spacers

Since the plate will be glued on, I won’t be able to finish inside the dome later. I want to apply a couple of coats of polyurethane to the interior spaces before the glue-up, so I used painter’s tape to mask off the areas that will need to be glued.

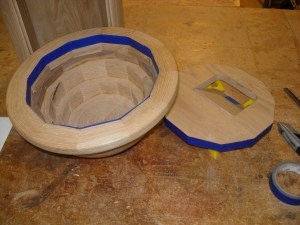

Masking the dome and plate

Masking the dome and plate

I applied a quick coat of poly to the required areas.

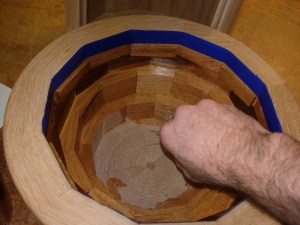

Applying urethane to the interior surfaces

Applying urethane to the interior surfaces

Next was the new upper base plate to replace the one that was too small. I made sure the panel was oversized this time.

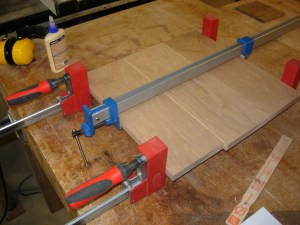

Glueing up the new upper base

Glueing up the new upper base

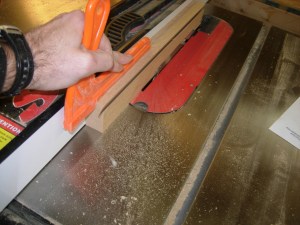

Back-cutting the half columns

Back-cutting the half columns

I pulled some 1″ thick stock, with some pretty grain, to make my half columns. Since the columns will be mated to the rounded outside of the cabinet, I cut a 20 degree back-angle from each side, on the table saw, creating a void on the back face. Next I cut two 45 degree chamfers on the outside of the column, on the router table.

Chamfering the corners

Chamfering the corners

I think that they will ultimately be attached with glue on the top and bottom, and brad nails shot from the inside out. When I have more time and patience, I will cut the walnut bead that will wrap the top and bottom of the columns.

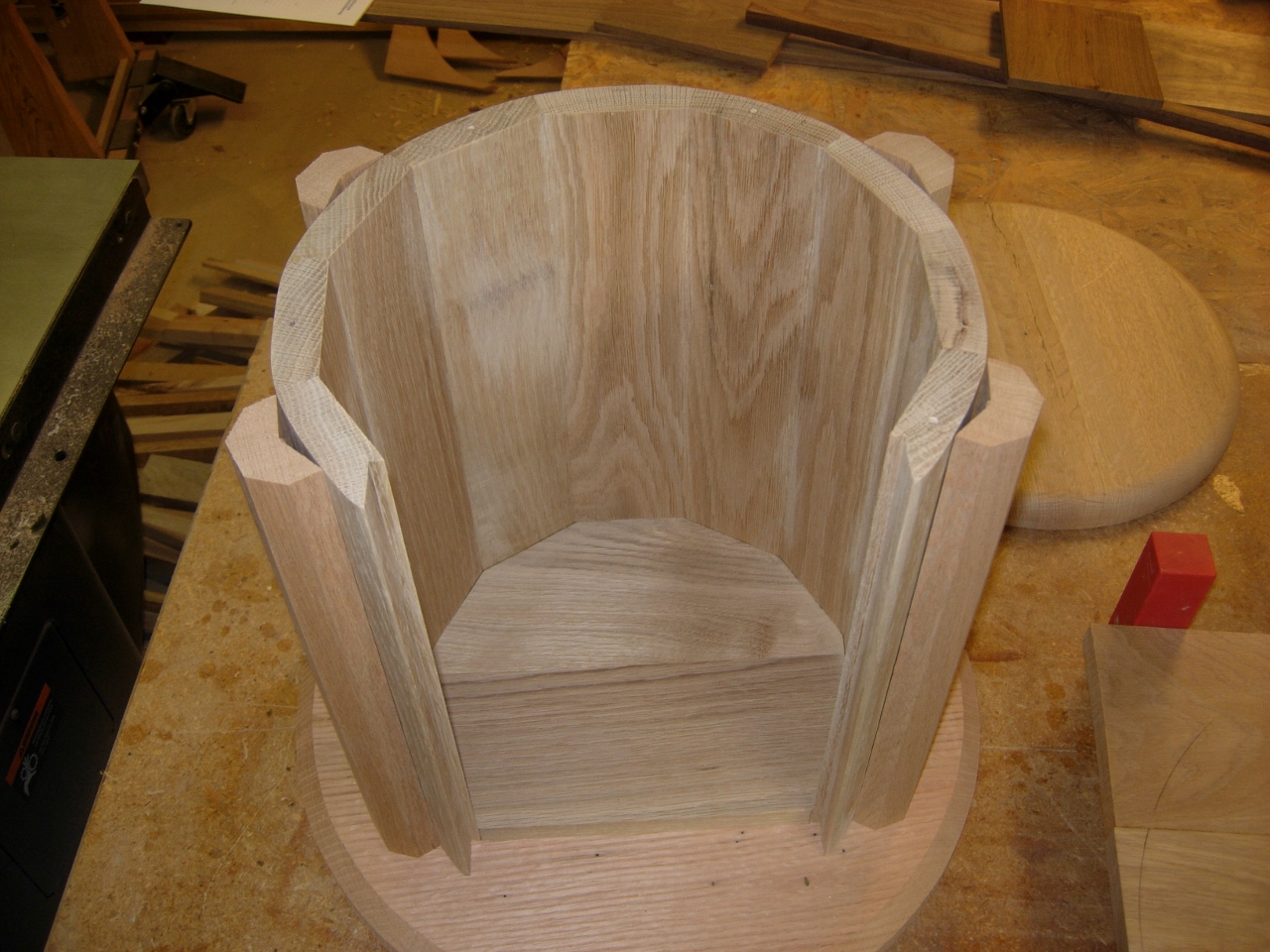

Locating the columns

Locating the columns
