Shadow box – day 2

With the glue dried on the box, I started on the frame. I picked up the cheapest 8″x10″ frame that I could find. I kept the glass and threw away the rest.

The pine frame doesn't work

The pine frame doesn’t work

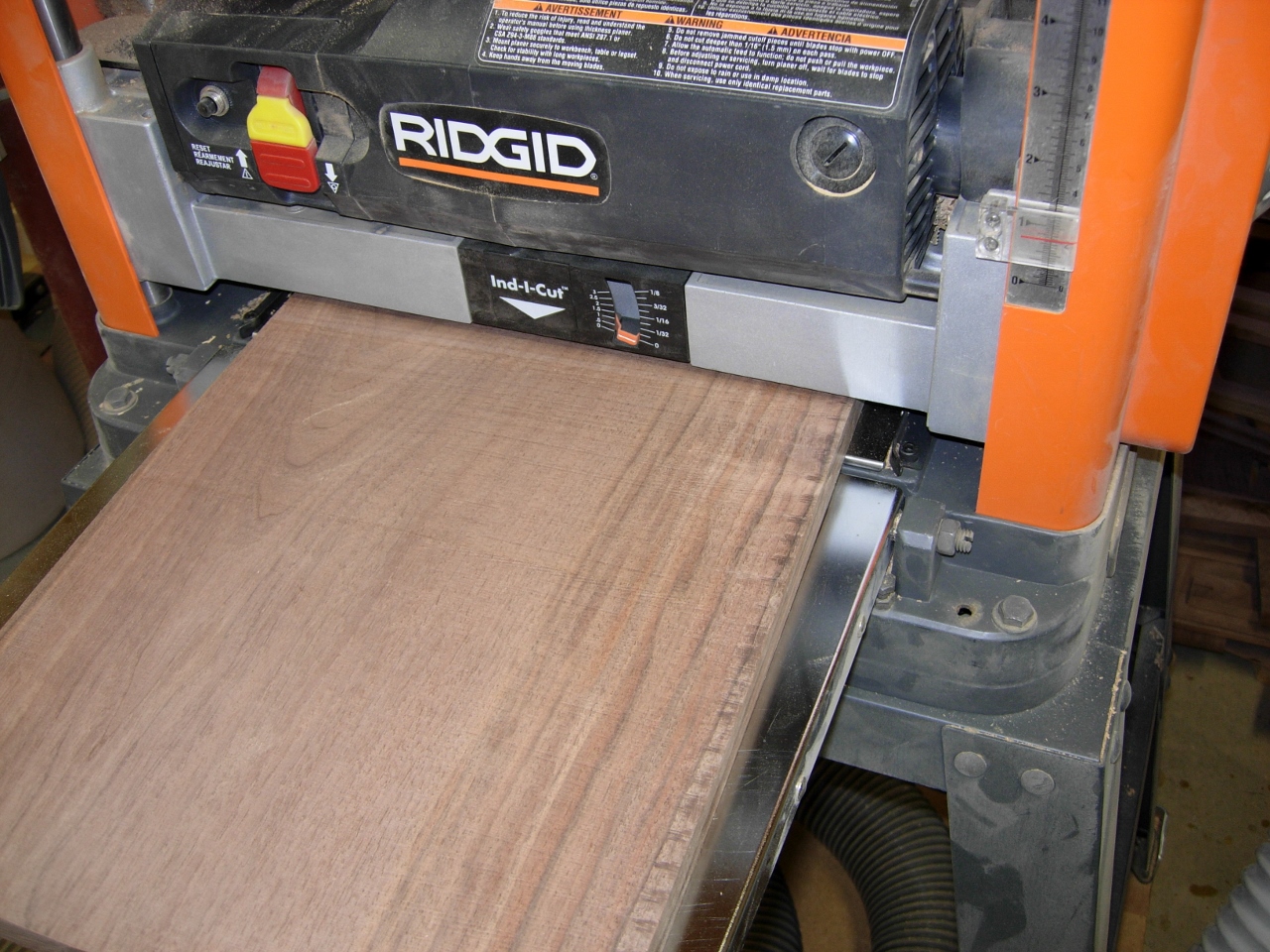

I had a re-sawn piece that needed a little flattening in the planer.

Flattening a piece of scrap

Flattening a piece of scrap

Once that was done, I ripped it into four strips that would create the frame.

Cutting the face frame pieces

Cutting the face frame pieces

I decided to join the face frame with lap joints so I cut them to length then took them over to the router table and cut the laps out.

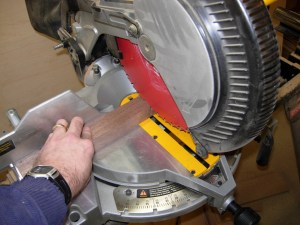

Cutting the frame to length

Cutting the frame to length

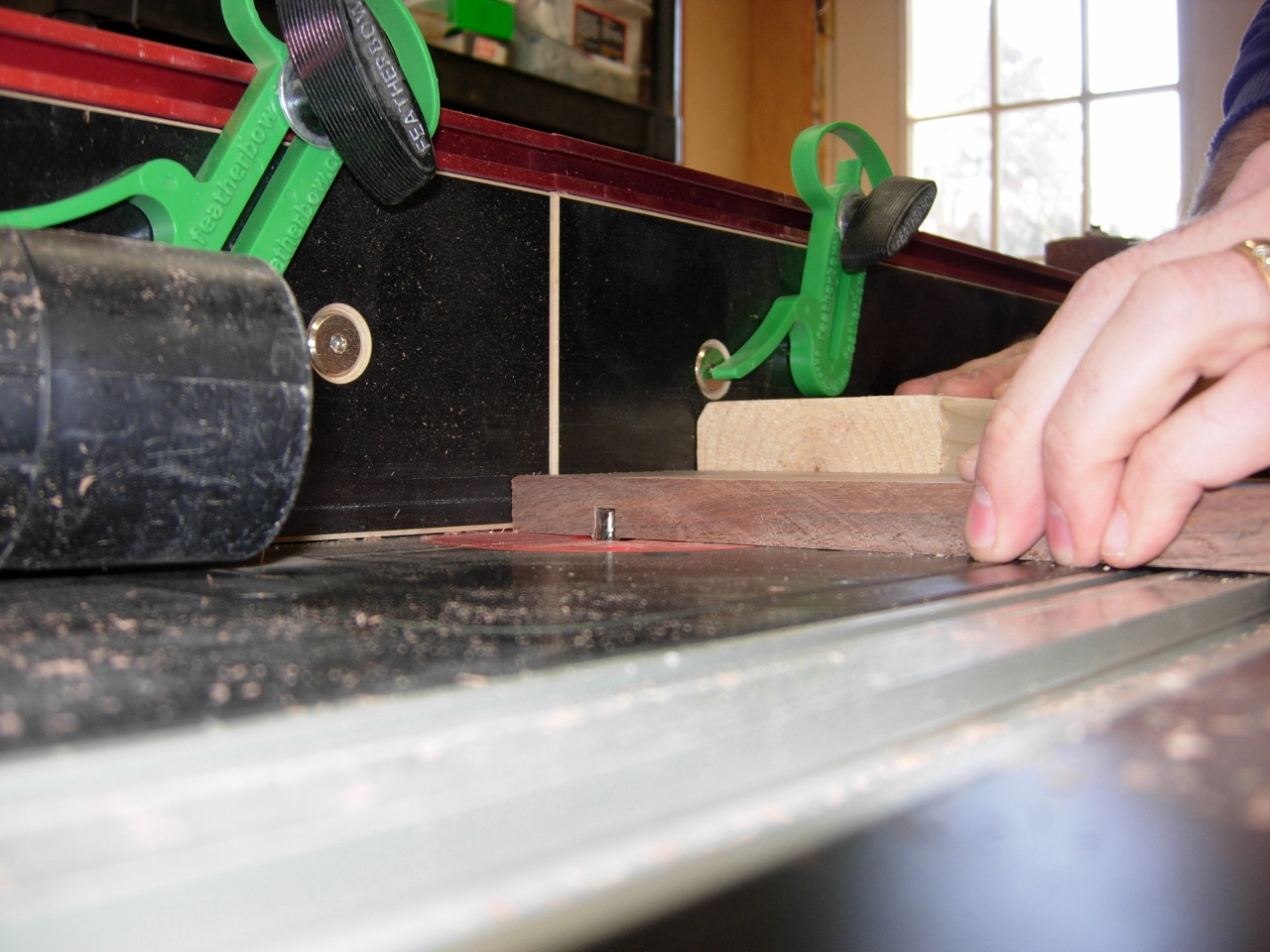

Routing the lap joint

Routing the lap joint

Next I used a chisel to clean up the joints.

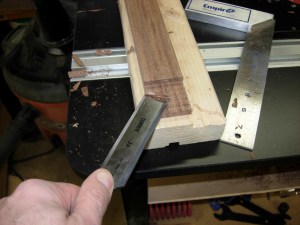

Cleaning the lap joints

Cleaning the lap joints

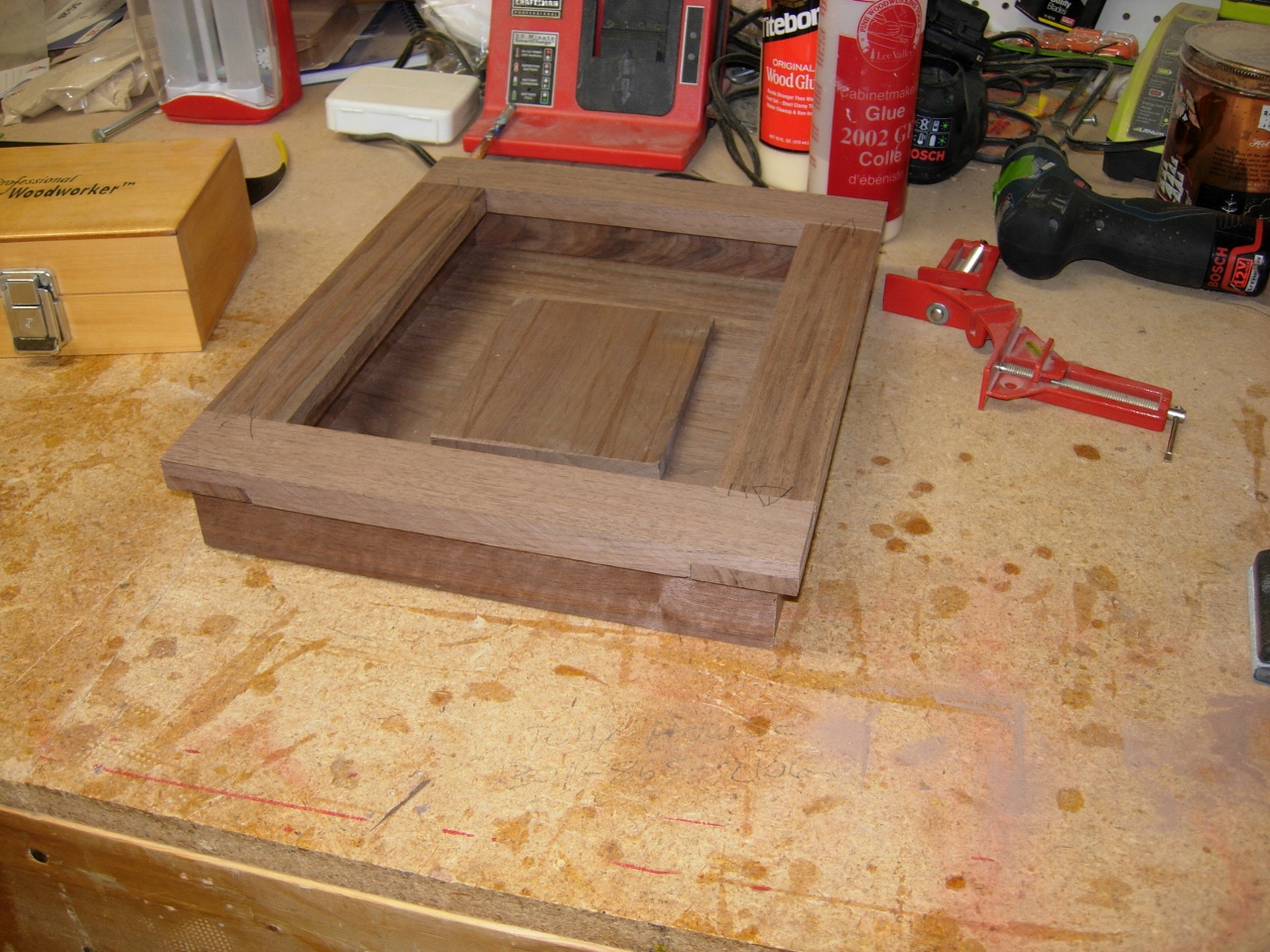

Cleaned and sanded, then assembled for a fit-check.

Fit check

Fit check

Before I finished for the day, I cut the mortises for the hinges in the box.

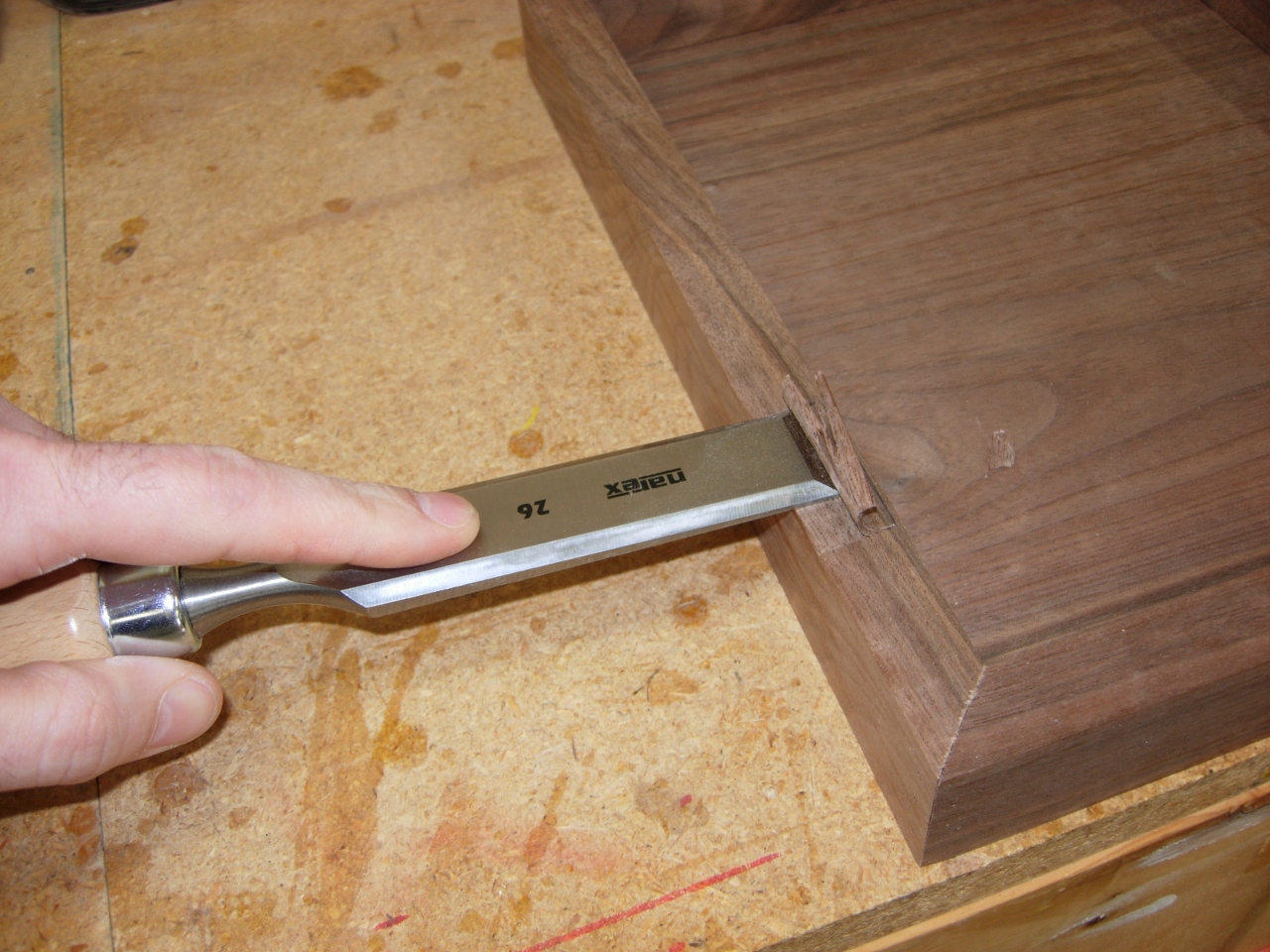

Cutting the hinge mortises

Cutting the hinge mortises

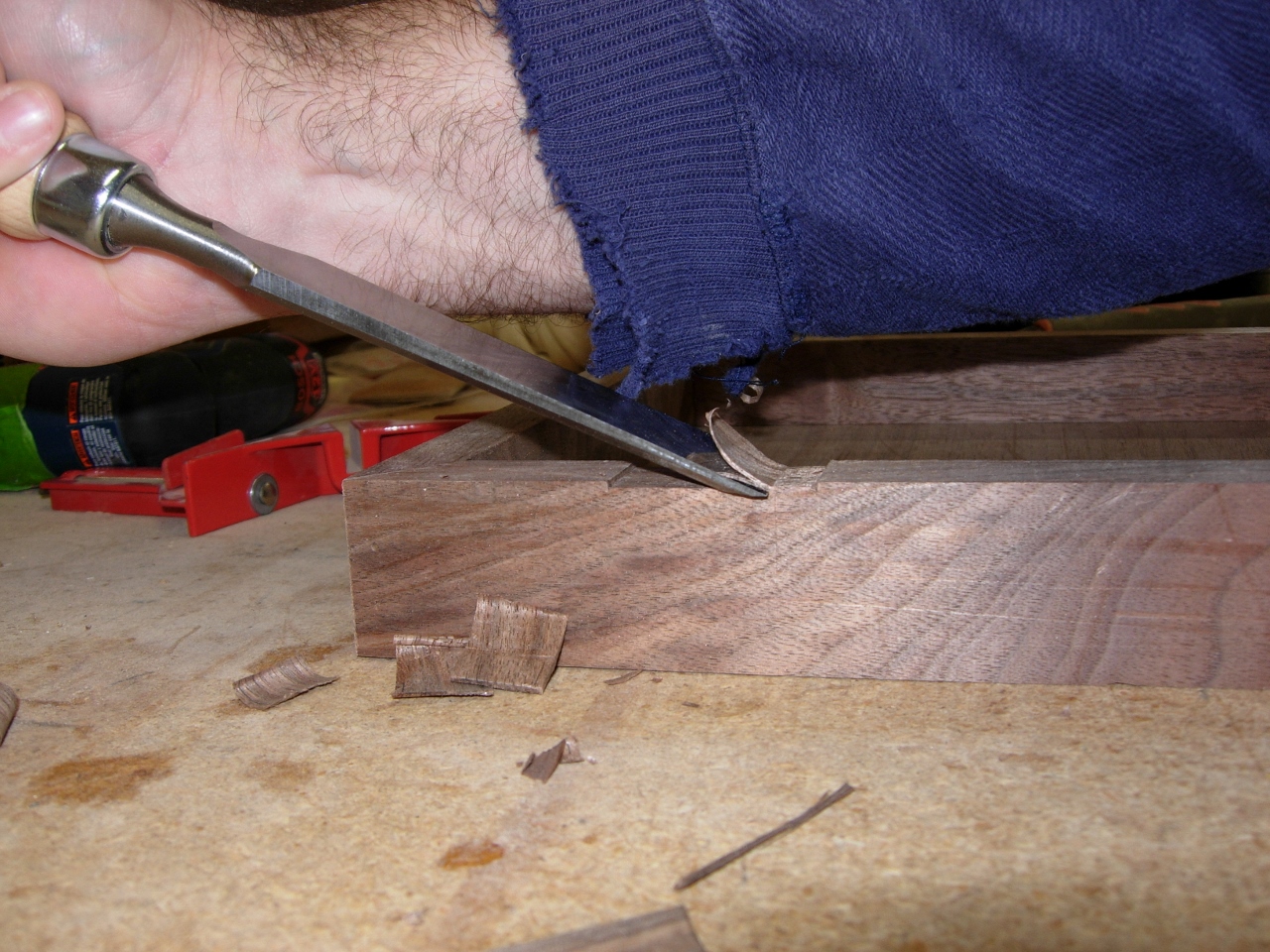

Cleaning the hinge mortises

Cleaning the hinge mortises

Tomorrow, I will figure out how I will mount the glass and locate the hinges on the face…
