Tabernacle build – day 13

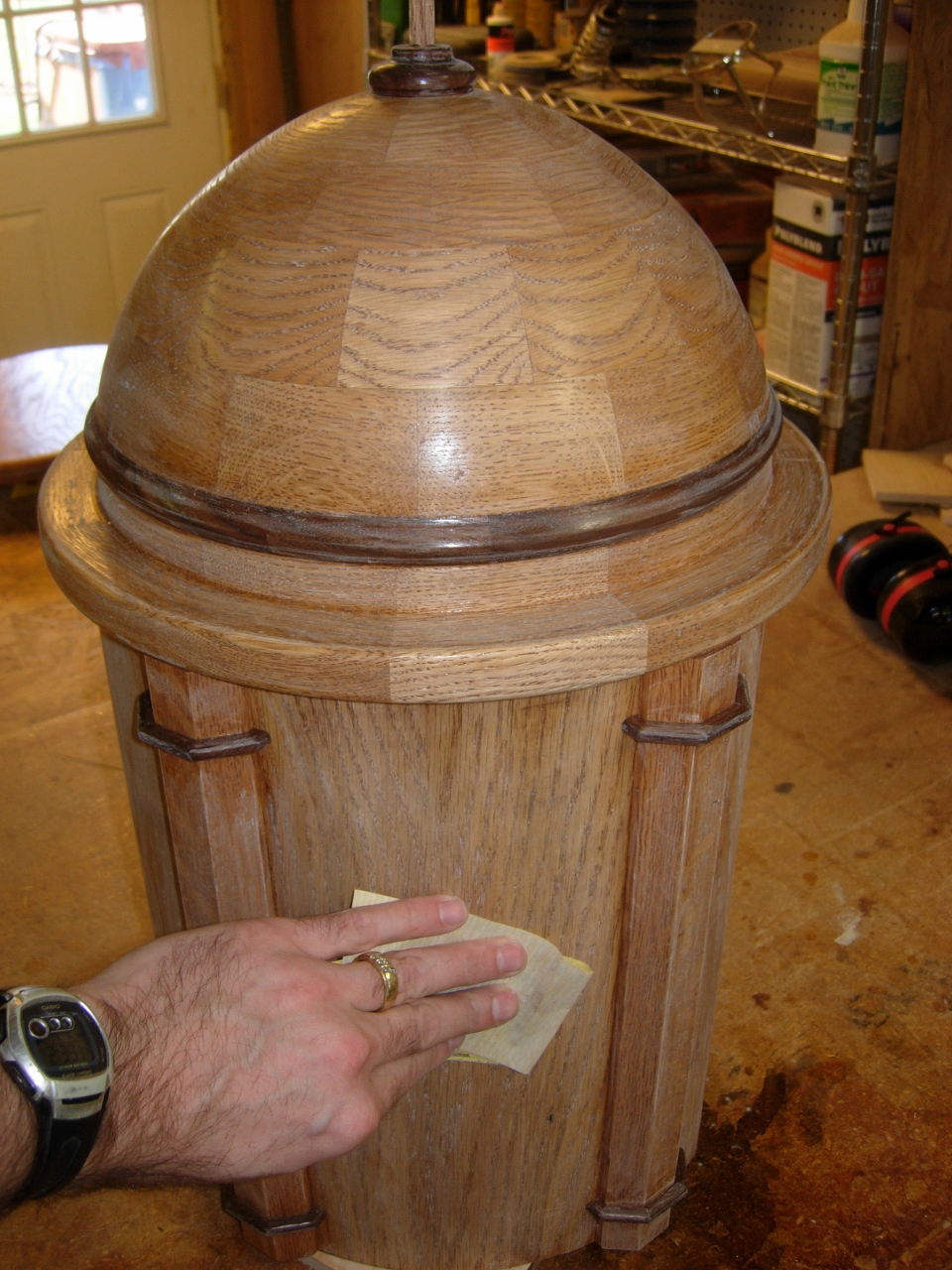

I put the third coat of poly on early this morning so I would have time for one more today. Before applying the fourth coat, I sanded the entire thing down with 400 grit paper to smooth out any dust that may have settled into the finish. I applied the fourth and last coat and let it sit for a few hours more.

Sanding everything down with 400 grit

Sanding everything down with 400 grit

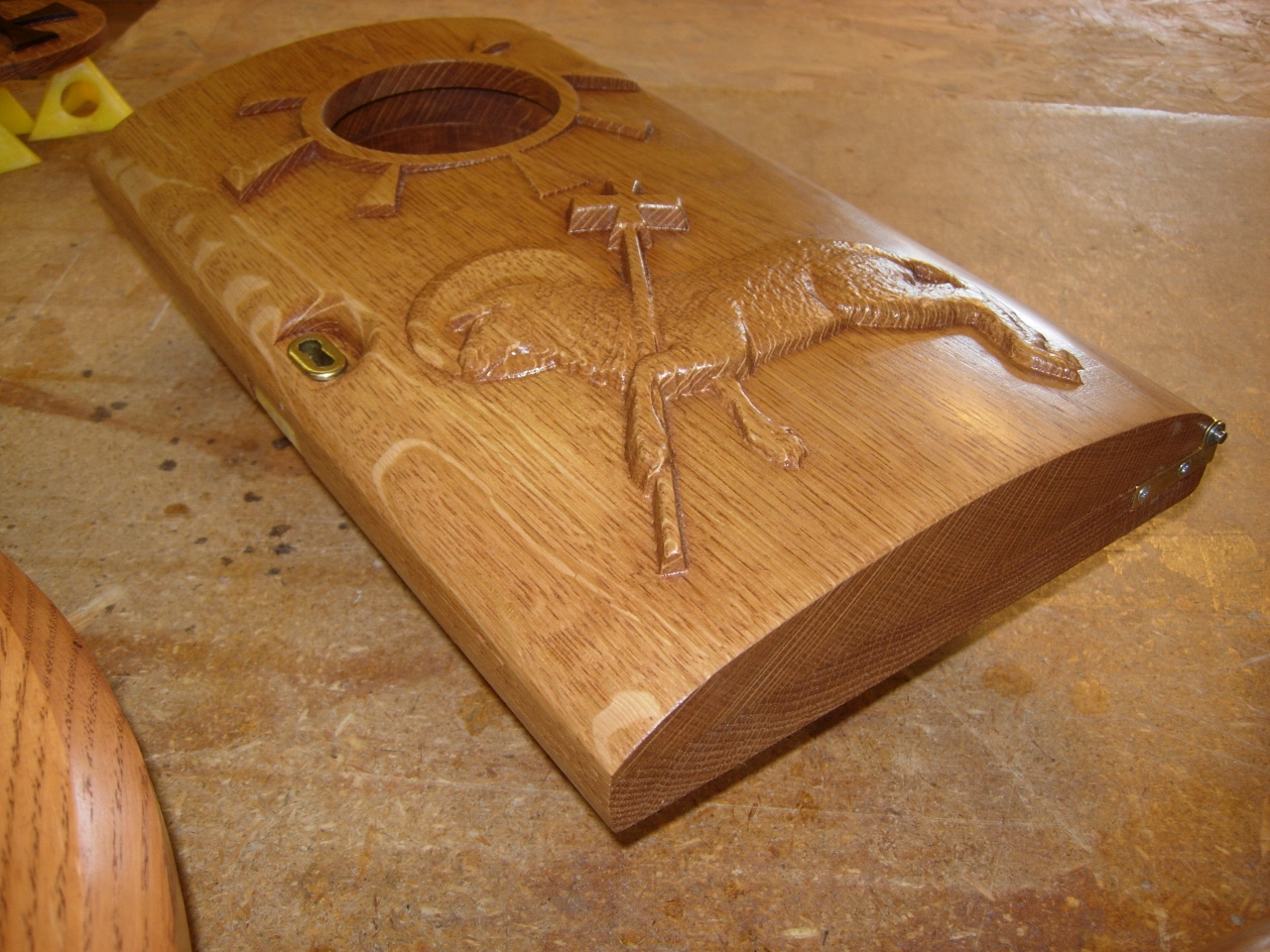

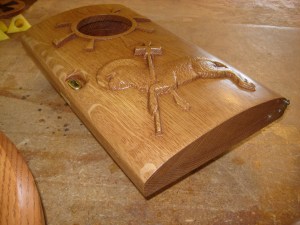

After I re-installed the hinges on the door, I remembered to install the escutcheon, as well. It has two thin plates of metal inside that get pushed into the wood on the sides of the opening.

Escutcheon installed

Escutcheon installed

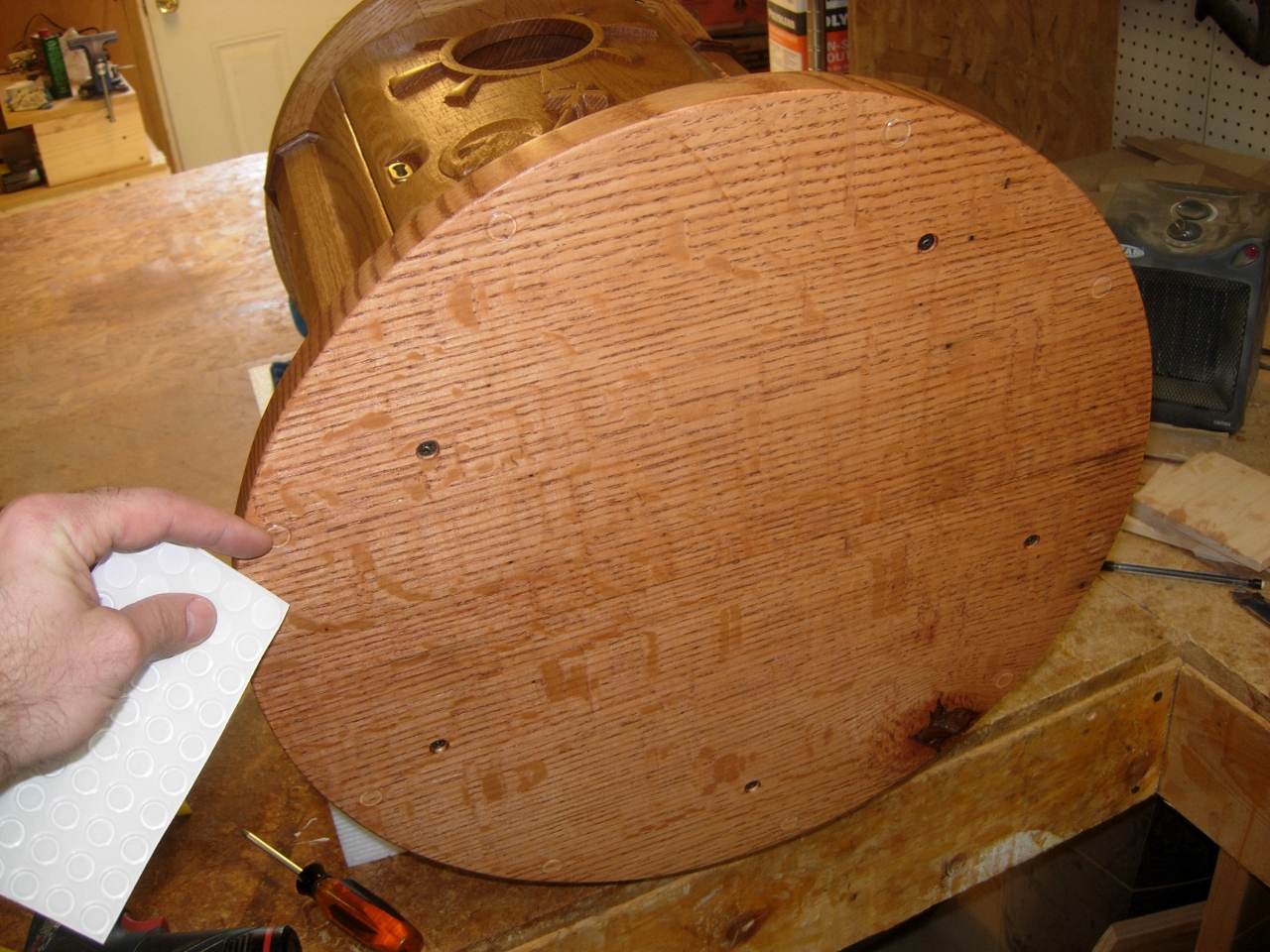

I purchased tome thin, flat, clear vinyl feet that I stuck to the perimeter on the bottom. These should prevent sliding or scratching.

Clear vinyl feet installed

Clear vinyl feet installed

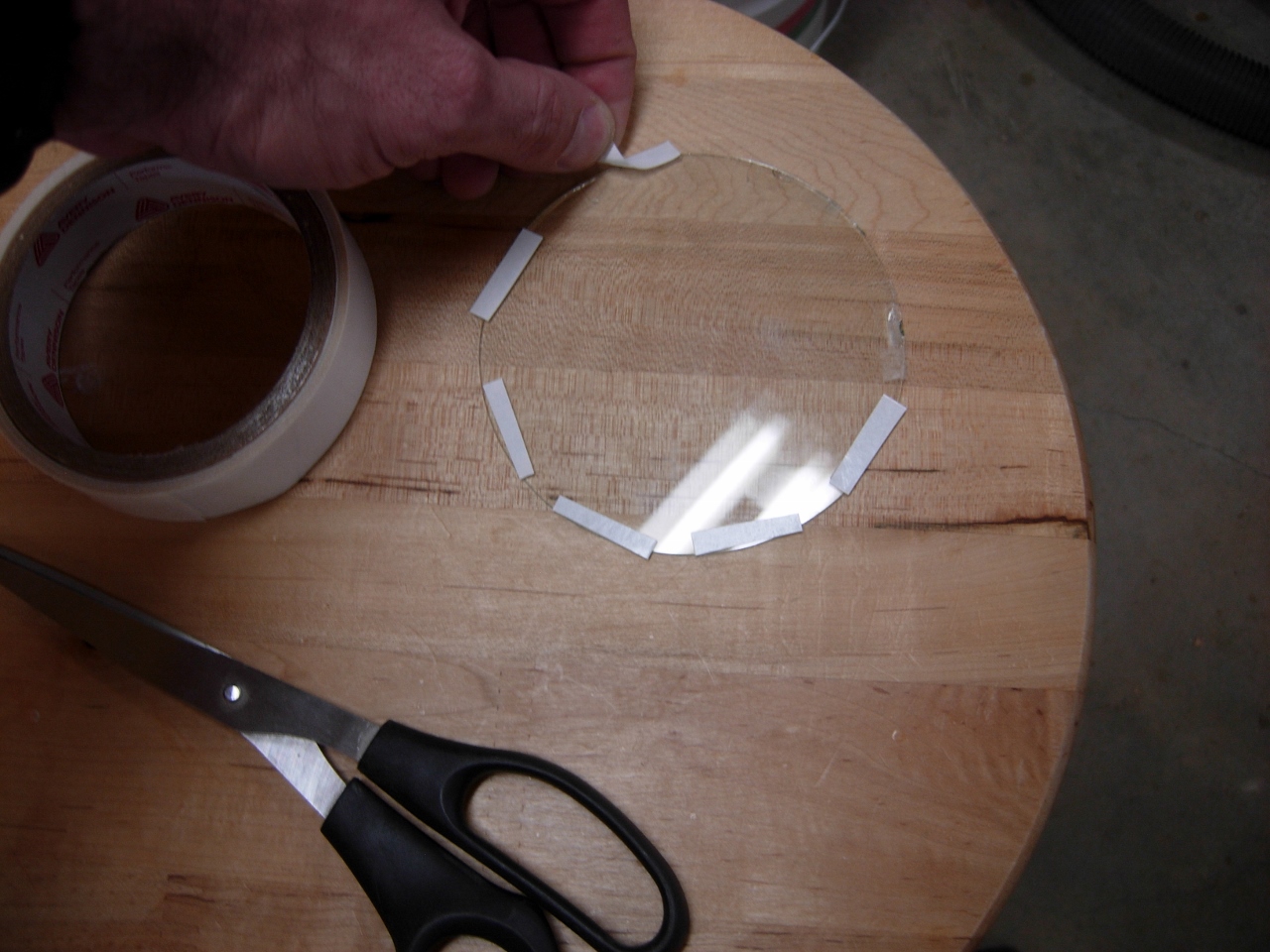

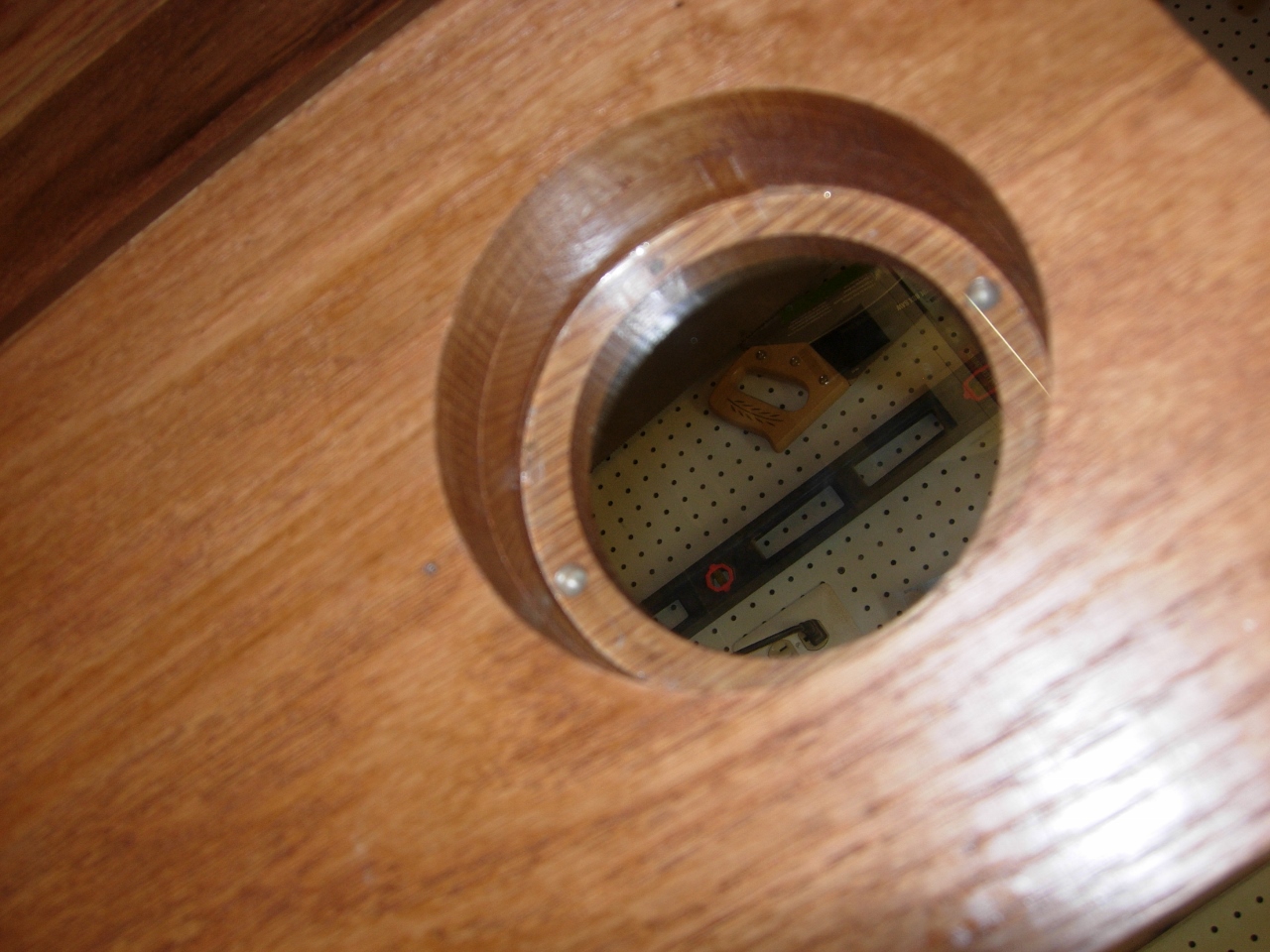

Double sided tape on the glass to prevent rattle

Double sided tape on the glass to prevent rattle

Before placing the window in its hole, I added some clear thin strips of double-sided tape to the outer edge. This will prevent the glass from rattling.

Glass installed

Glass installed

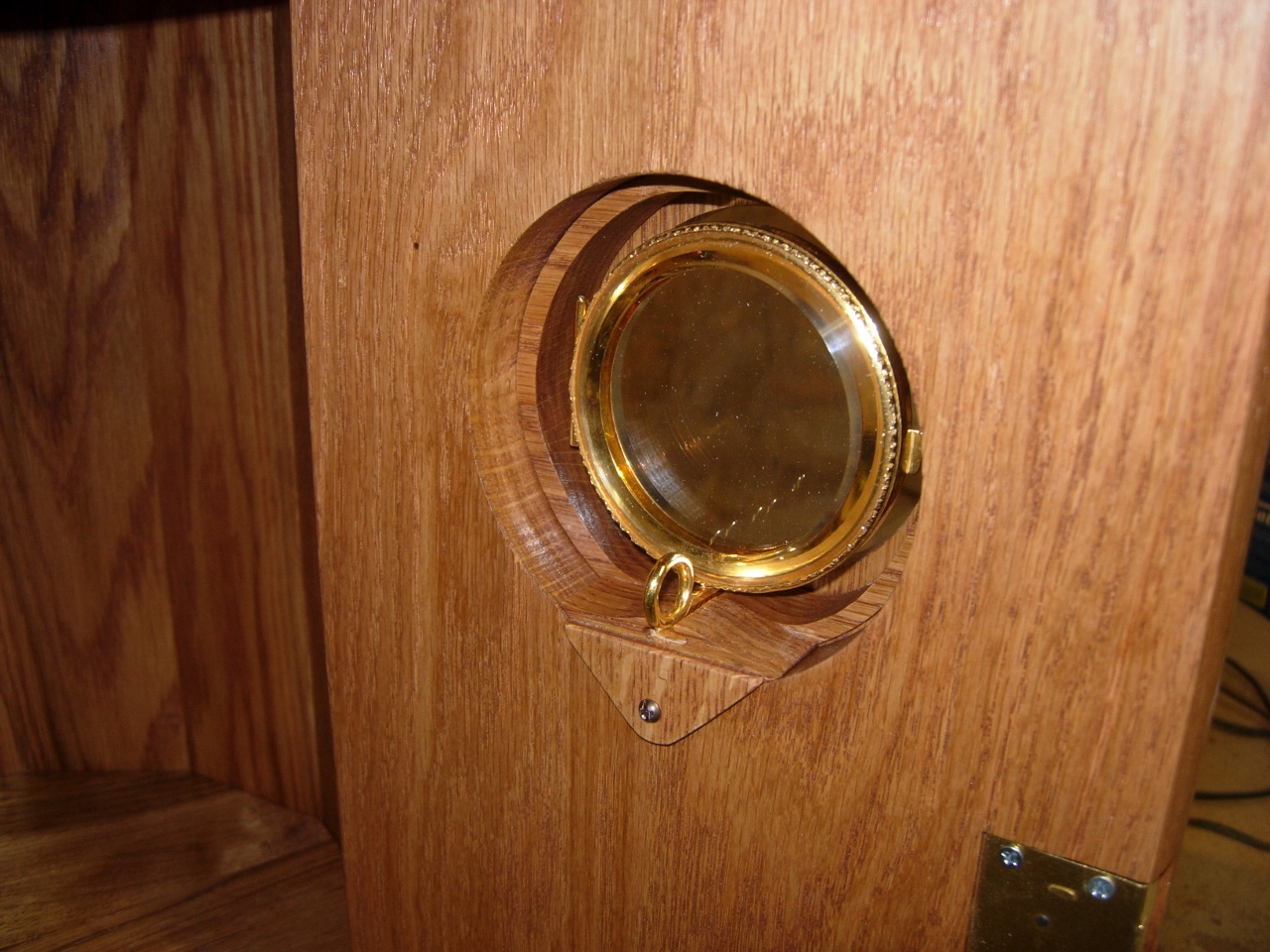

After the window went in, I installed the retainer, then added the pyx to make sure the finish didn’t gum up the slot.

Pyx inserted

Pyx inserted

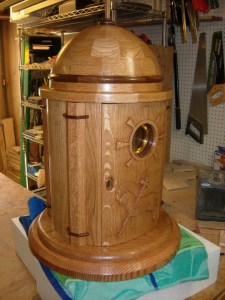

Then I took a bunch of pictures from different angles…

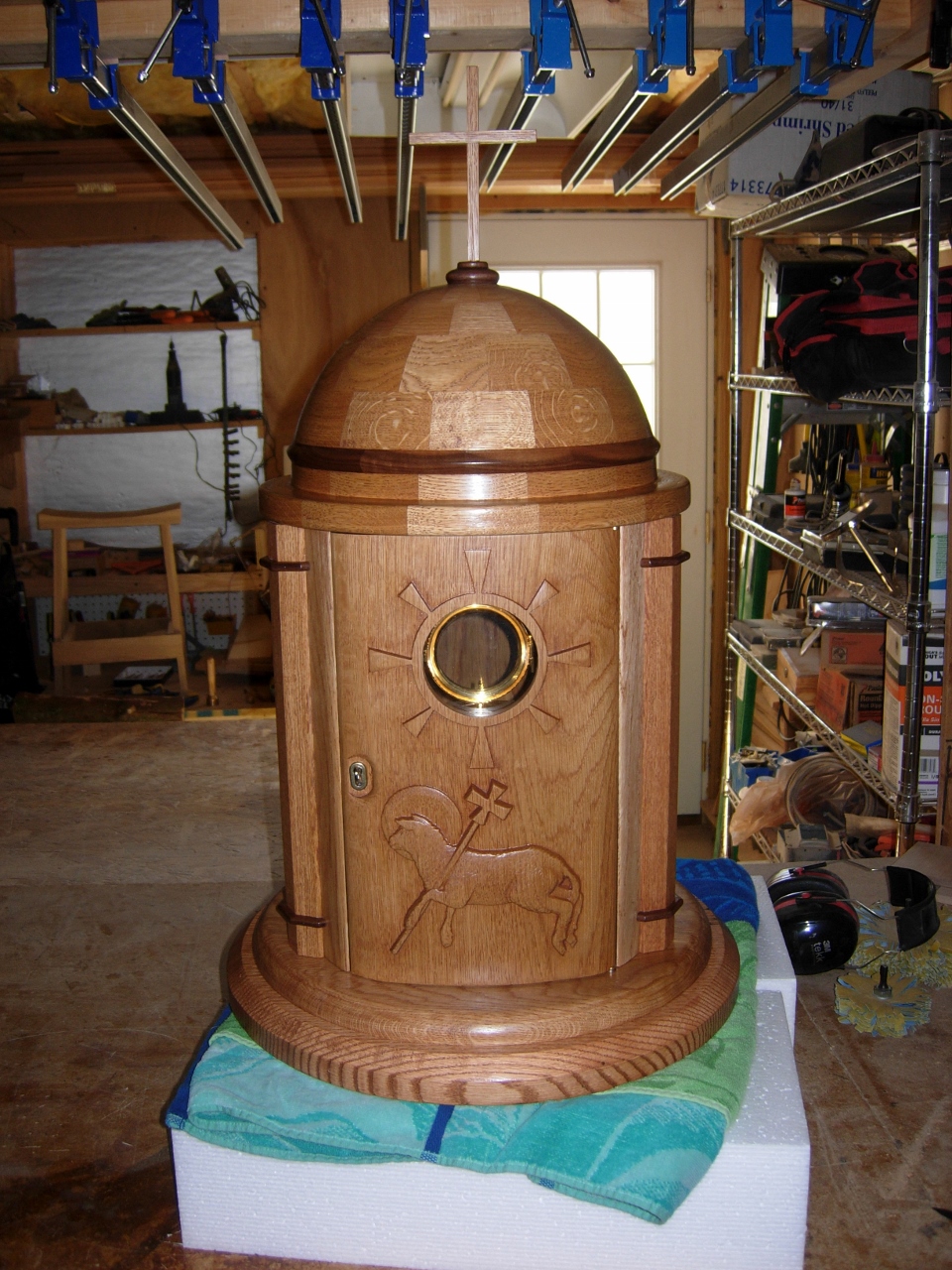

Finished with window open

Finished with window open

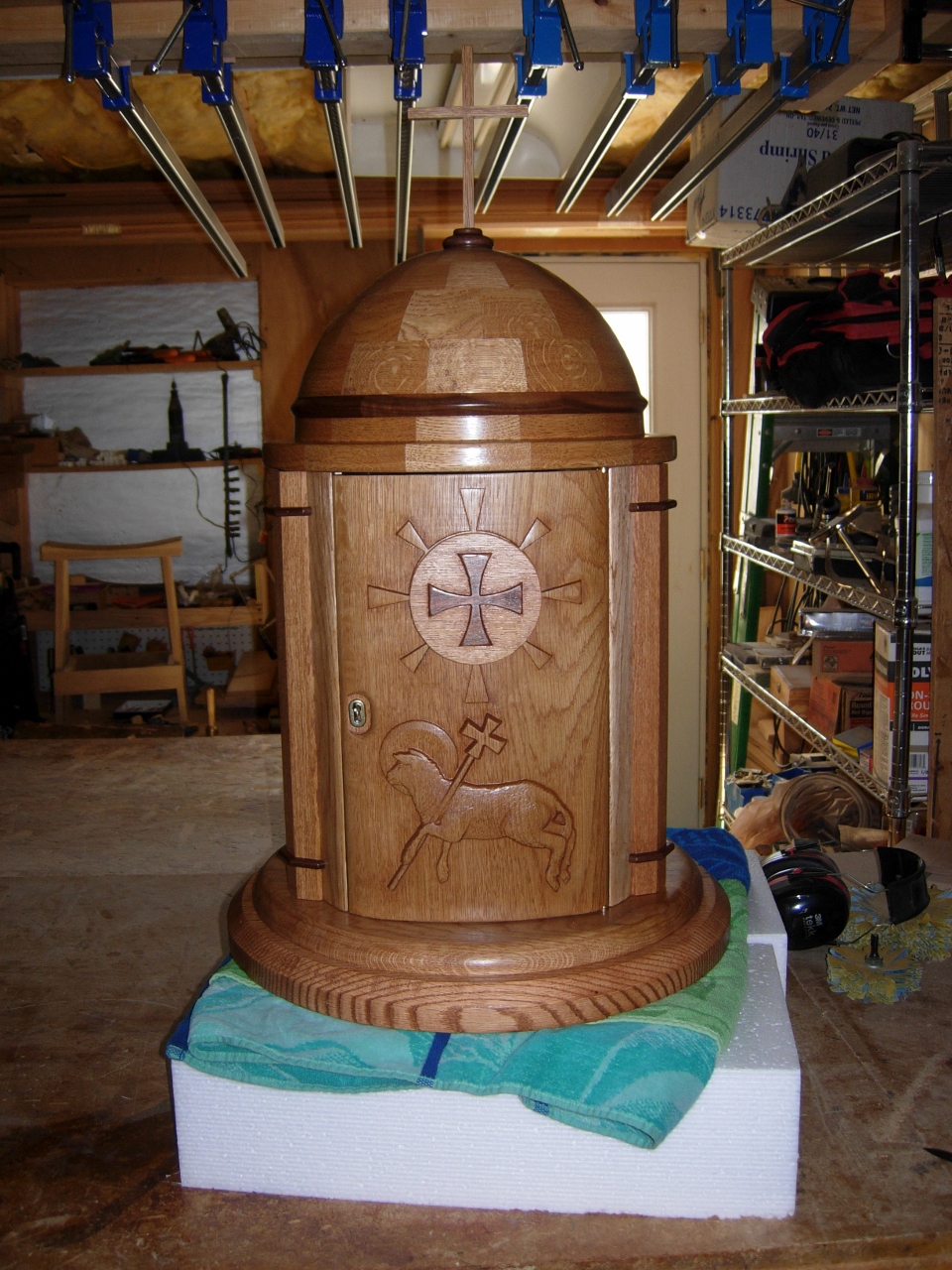

Finished with window closed

Finished with window closed





As I was sitting down to write this post, my wife reminded me to put my mark on the tabernacle.

Almost forgot

Almost forgot

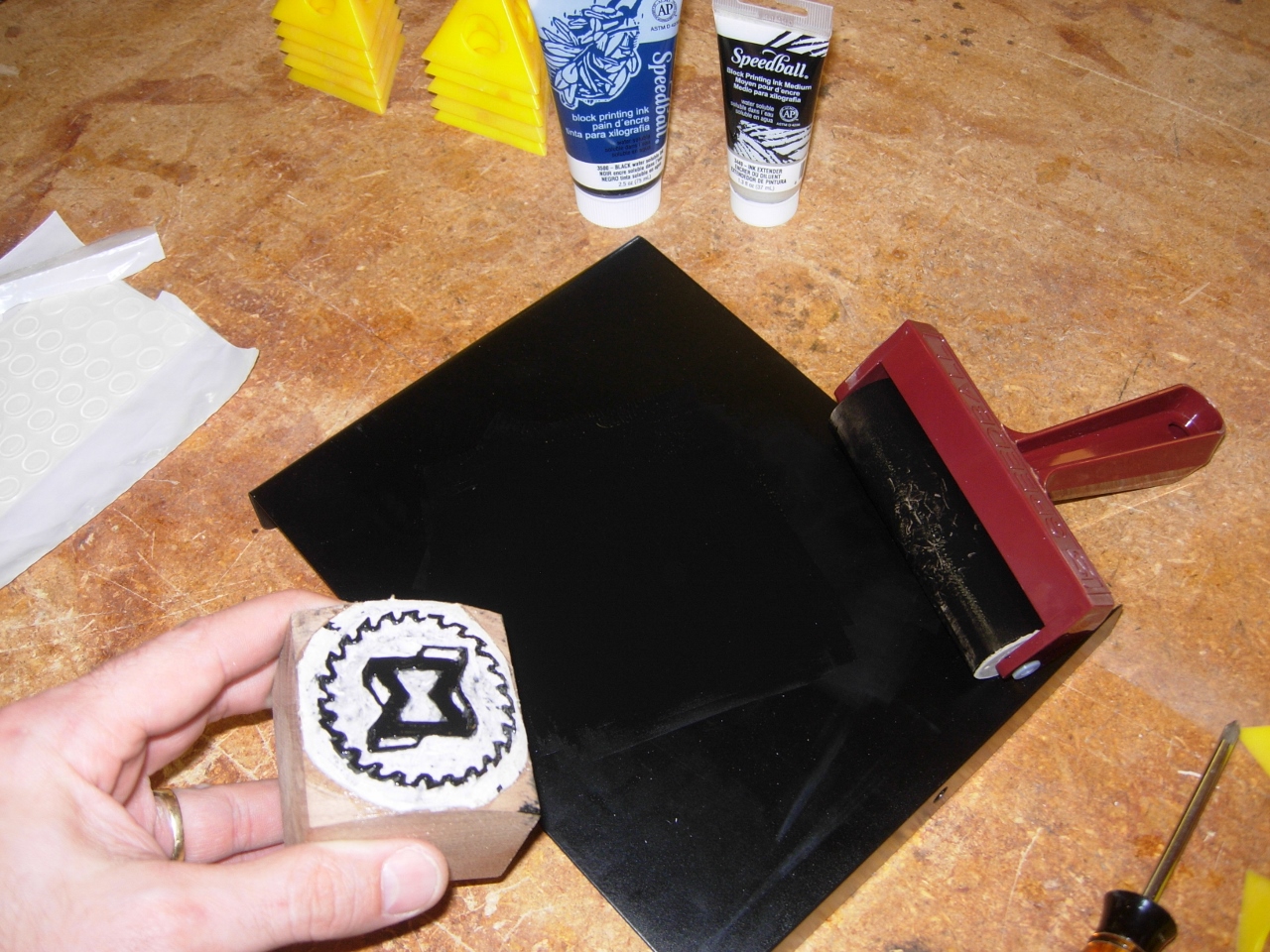

I got out my ink and rubber stamp, and went back down to the shop. I decided to mark the inside of the hidden door. Not too obtrusive I hope.

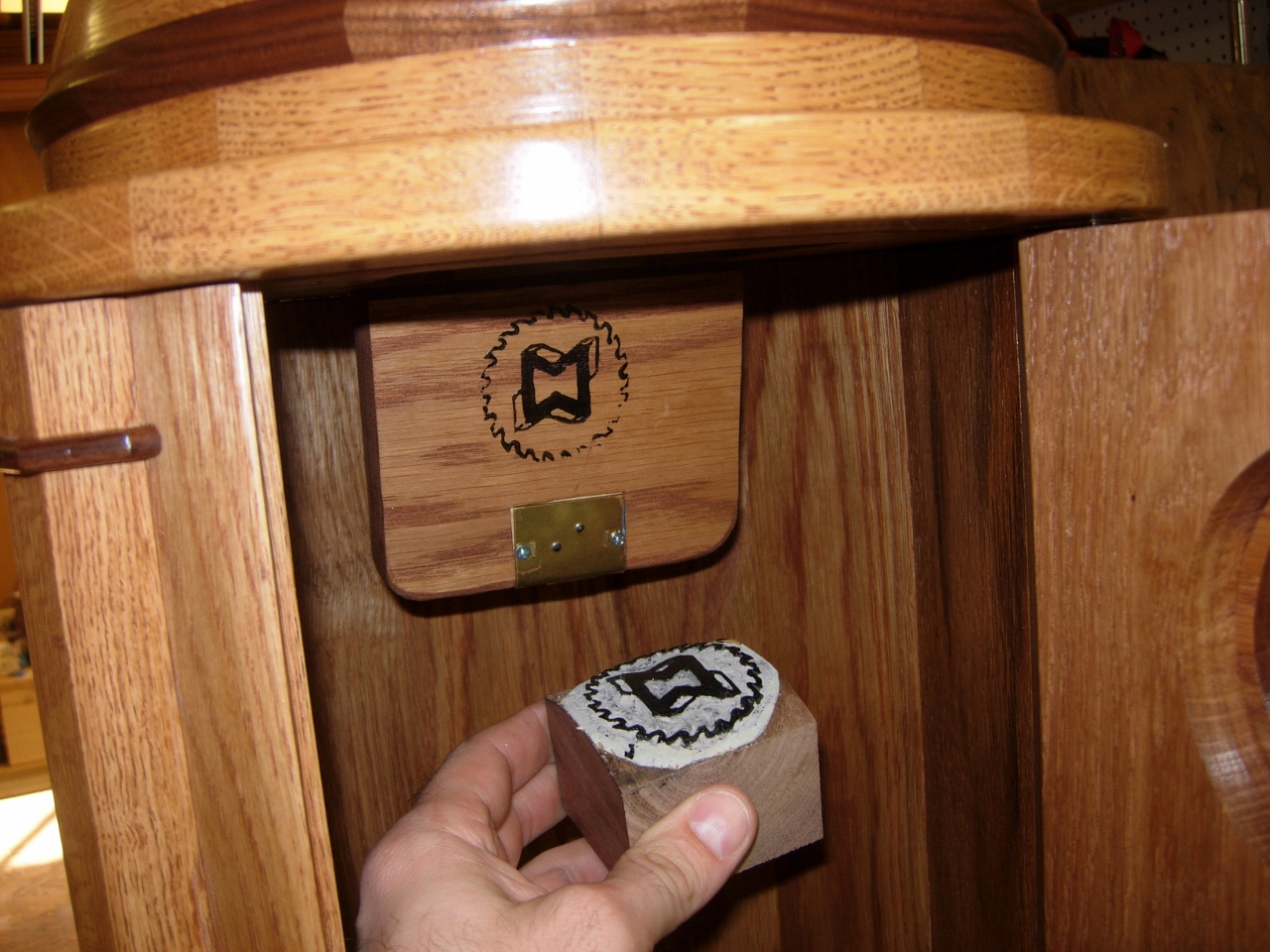

Marked and ready for delivery

Marked and ready for delivery
