My new table saw – day 2

Long day today. I ran out and bought the stuff I would need to add a 220V line to the shop. I also decided to make the trek back to woodcraft and get the rest of my parts to complete my saw setup. So after quite a lot of driving, I now have everything to get the saw up and running.

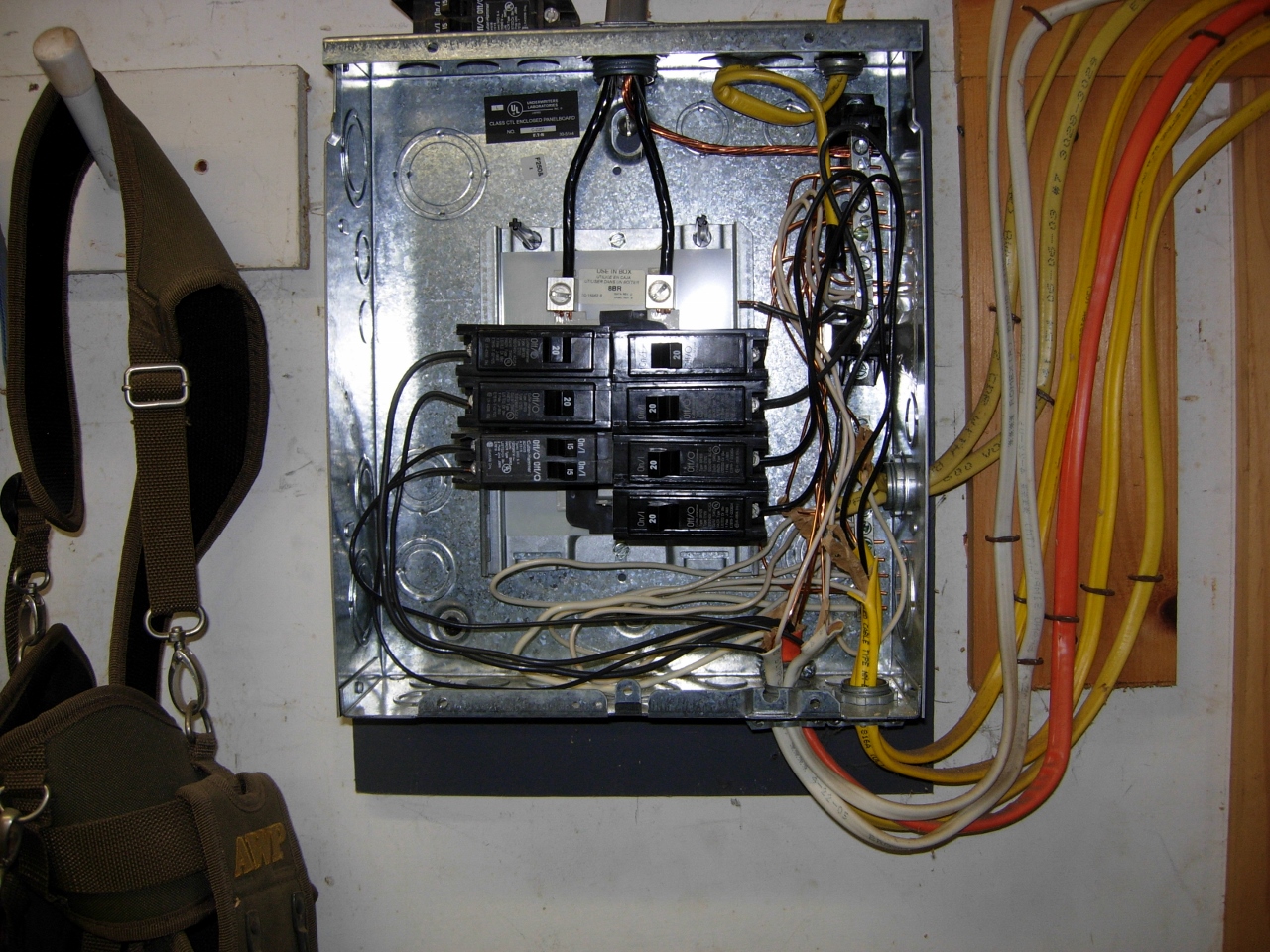

I pulled the face off the panel and started moving breakers around. I needed two spaces that were next to each other, so I shifted a couple out of the way. Only one clock needed to be reset, I think. I also decided to add a second 120V line while I was at it.

Adding the 220V line

Adding the 220V line

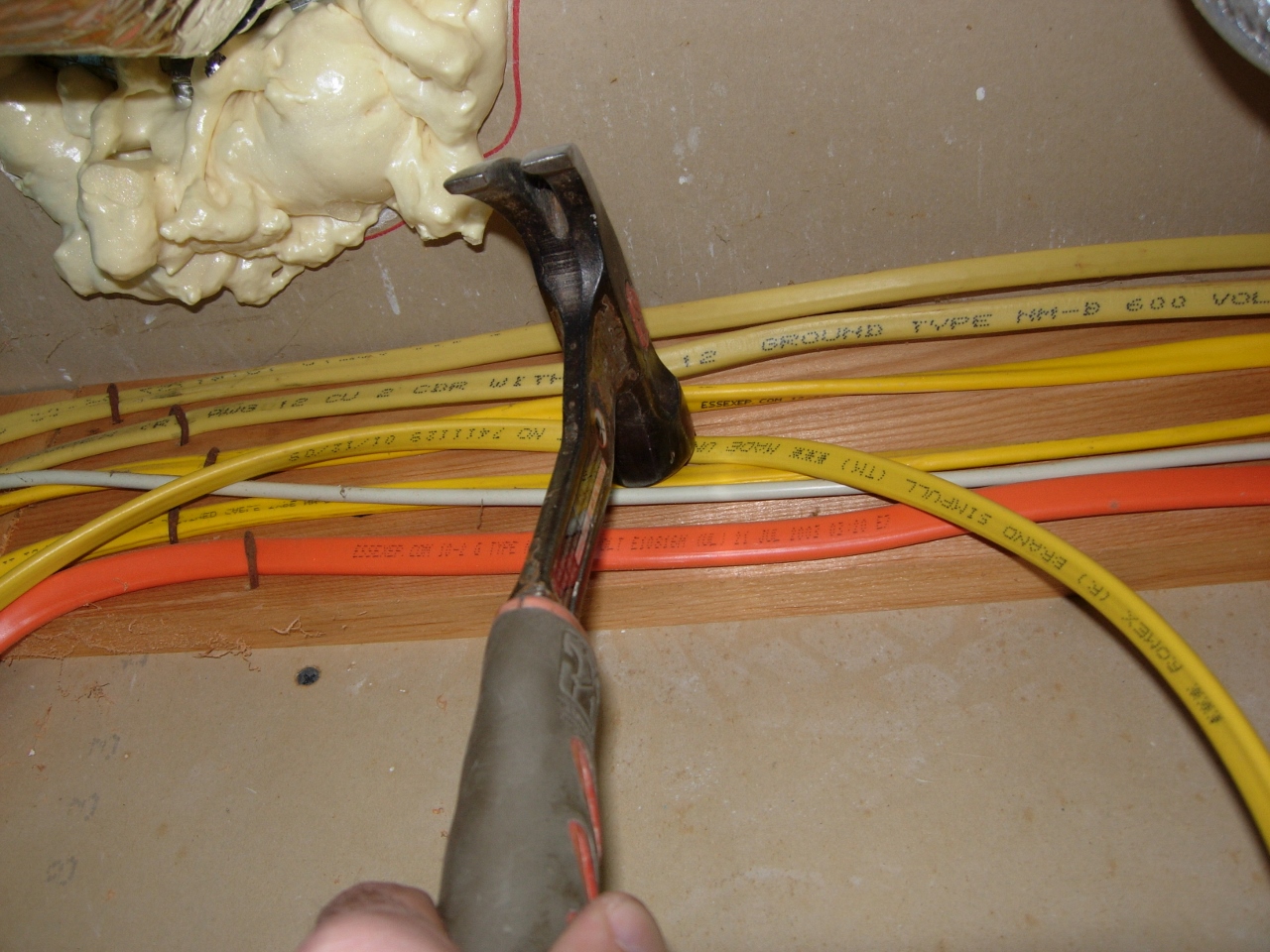

Stapling the wire for the new circuit in place

Stapling the wire for the new circuit in place

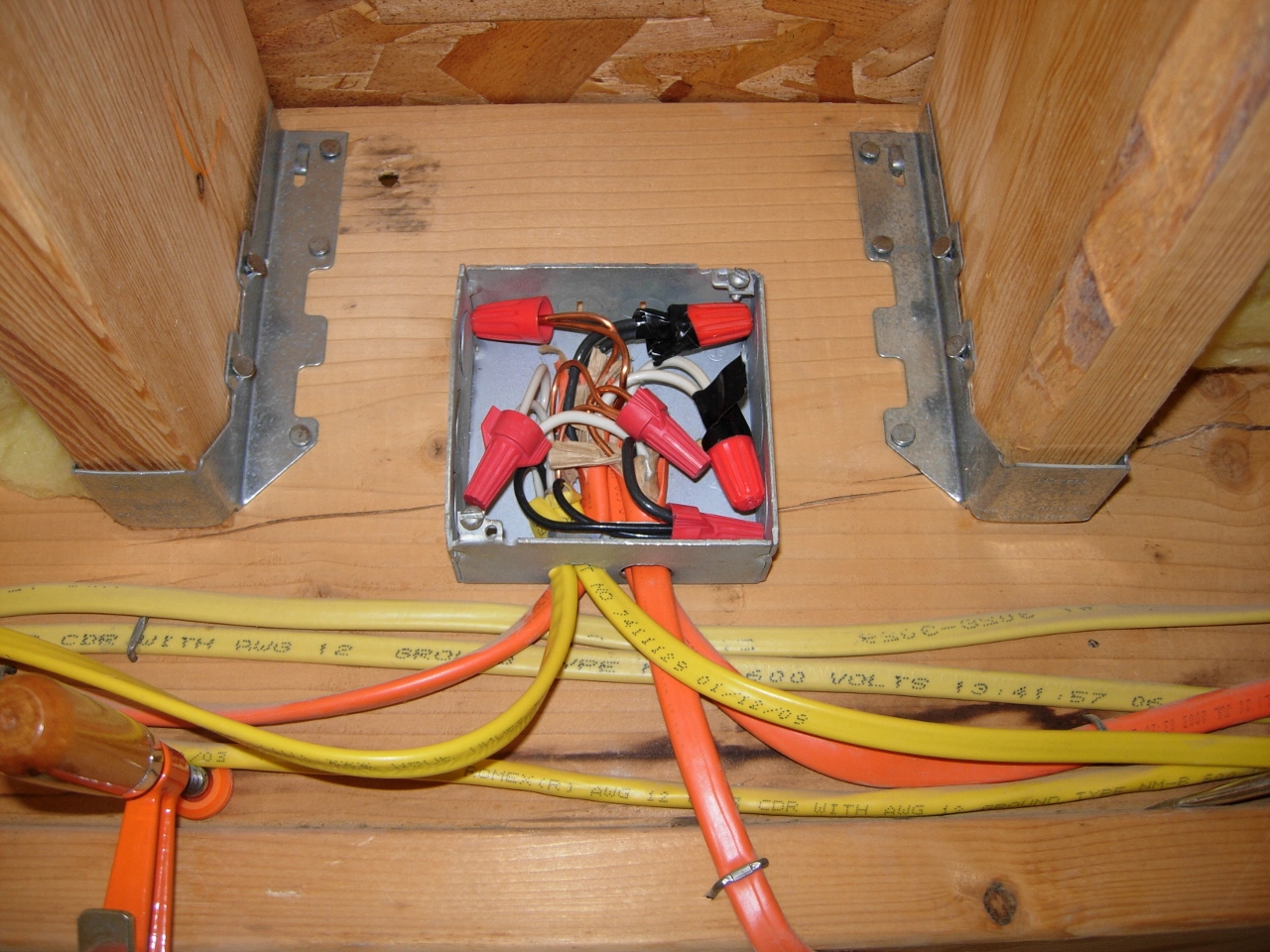

I fished the wire back along and through the wall to my shop. When I got to the junction box that used to tie this circuit to the table saw, band saw, lathe, planer, and dust collector, I separated it to two separate circuits. One is now dedicated to the table saw. The other circuit will be for the rest.

Junction box (before)

Junction box (before)

Junction box (after)

Junction box (after)

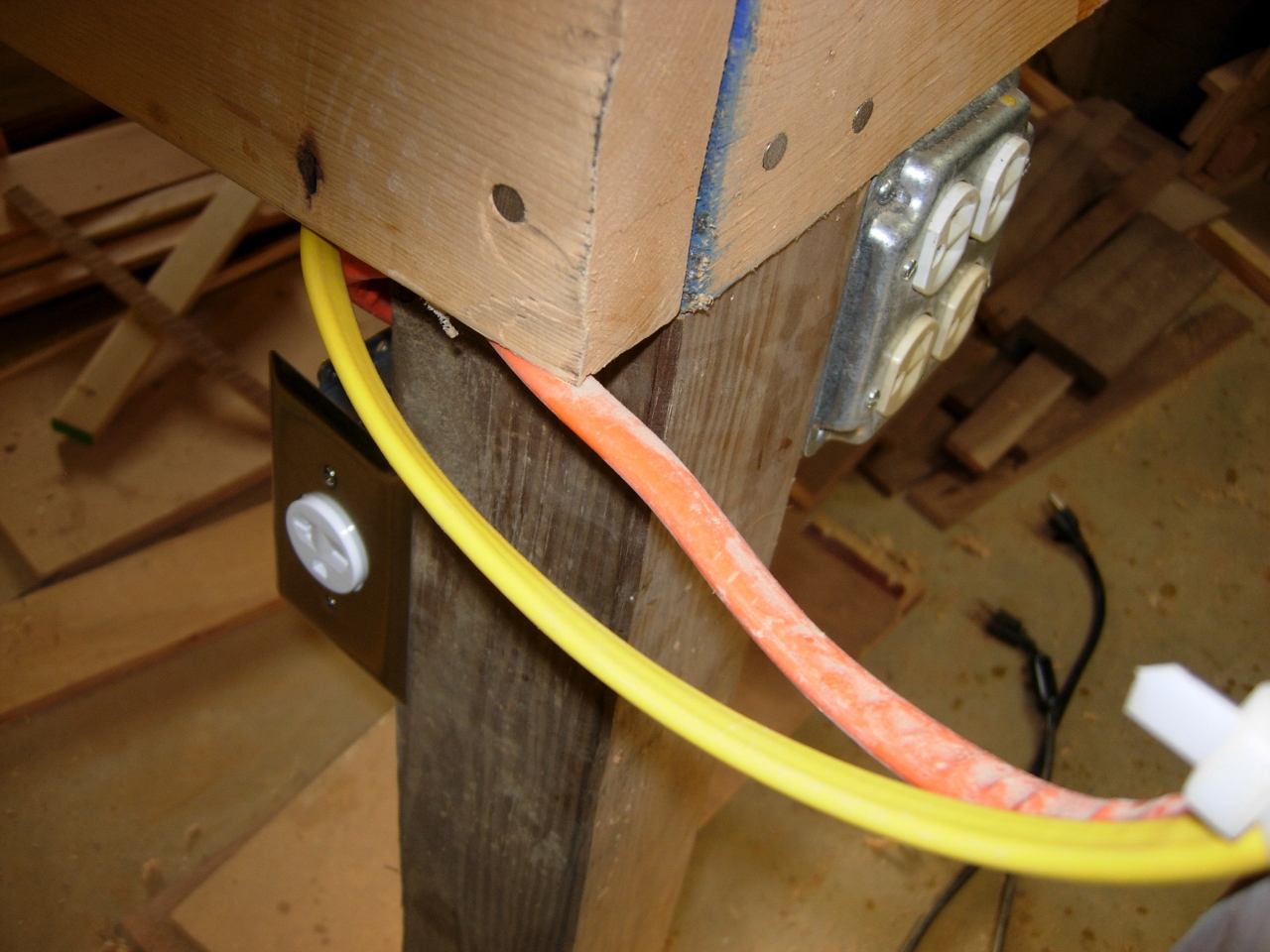

I used to run most of my tools from a quad receptacle under my bench. I had to put in a new box for the 220V receptacle, so the two new circuits will run to them.

Adding new 220V recept

Adding new 220V recept

Electrical finished

Electrical finished

Once the electrical was done, I opened all of the new boxes that I just brought home. I spent a few hours finishing up the installation of the rails. Tomorrow, I need to figure out how to raise the saw up 2″ to meet the bench top. The old saw had a mobile base that elevated it. The base on the new saw retracts when it is released. I would rather lower my bench, but that would be a lot harder to do.
