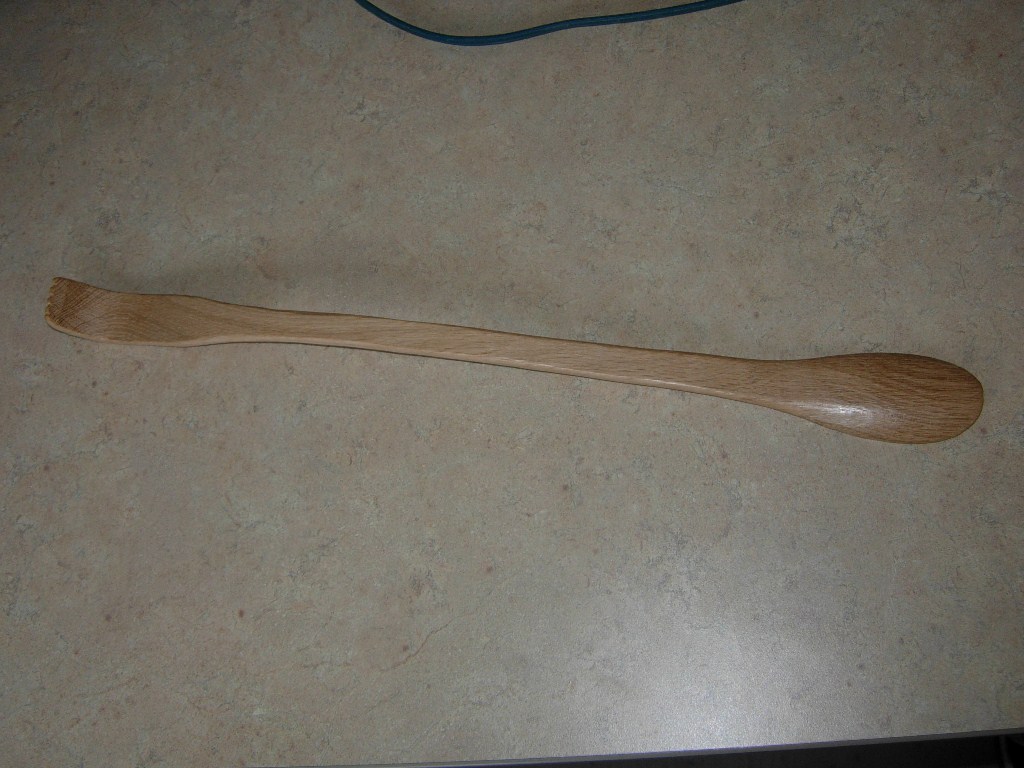

A quick back scratcher

The new back scratcher

The new back scratcher

I had an hour to kill last night so I thought I would make something from my scrap pile. A month or two back, my kids broke the cheap back scratcher that just floats around the house. I had a piece of 4/4 white oak in my scrap bin that had a curvy grain pattern that looked similar to the old back scratcher, so I cut it out and sanded it down. It made a fantastic replacement. The wood was springy yet strong. So last night I decided to make another one, but with a twist. A co-worker had commented that he couldn’t find a good, long shoe horn anywhere. I thought: Why not combine the two? I grabbed another piece of white oak from the scrap pile. This one was 1-1/2″ x 2″. I cut it down to 18″ long and sketched the shape down the side. Took it over to the band saw and started cutting it down. I still had the 3/4″ blade installed so I cut a bunch of relief cuts to get around the curves, then cleaned them up on the spindle sander. Once I had the side shaped, I rotated it and layed out the adjacent side to roughly shape the shoe horn end. I used the spindle sander to shape the curves then trimmed the rest up on the band saw. The scratcher end is narrower then the horn end so I wound up with two half inch wide, 13″ long mini back scratcher shaped pieces of scrap. I sanded one down quickly to make a mini scratcher for my helper Adam and left it on his desk to find in the morning. I went back to the main project and rounded all the sharp edges, that I could, on the sander. I then moved to the bench and hand filed down the hard to reach inner curves. I did a quick final sanding with some foam sanding blocks, then filed in some teeth on the scratcher end. I don’t know if they help, but they can’t hurt… That done, I added a couple of coats of paste wax and was done. I tested the shoe horn when it was dry. It worked pretty well. So the next time you get an itch, pull a chunk out of your burn pile or scrap pile, look at the grain and see if it reminds you of something useful.

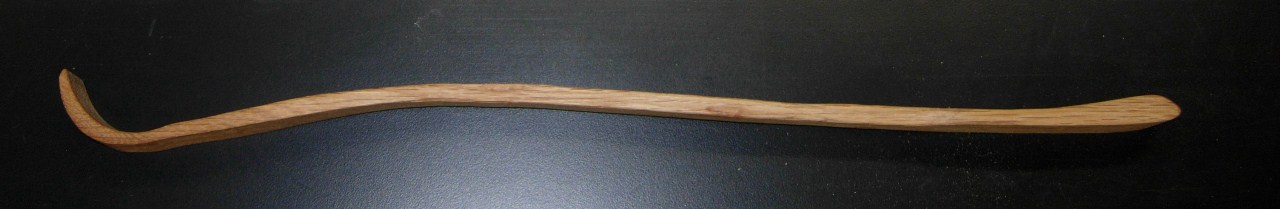

The original

The original

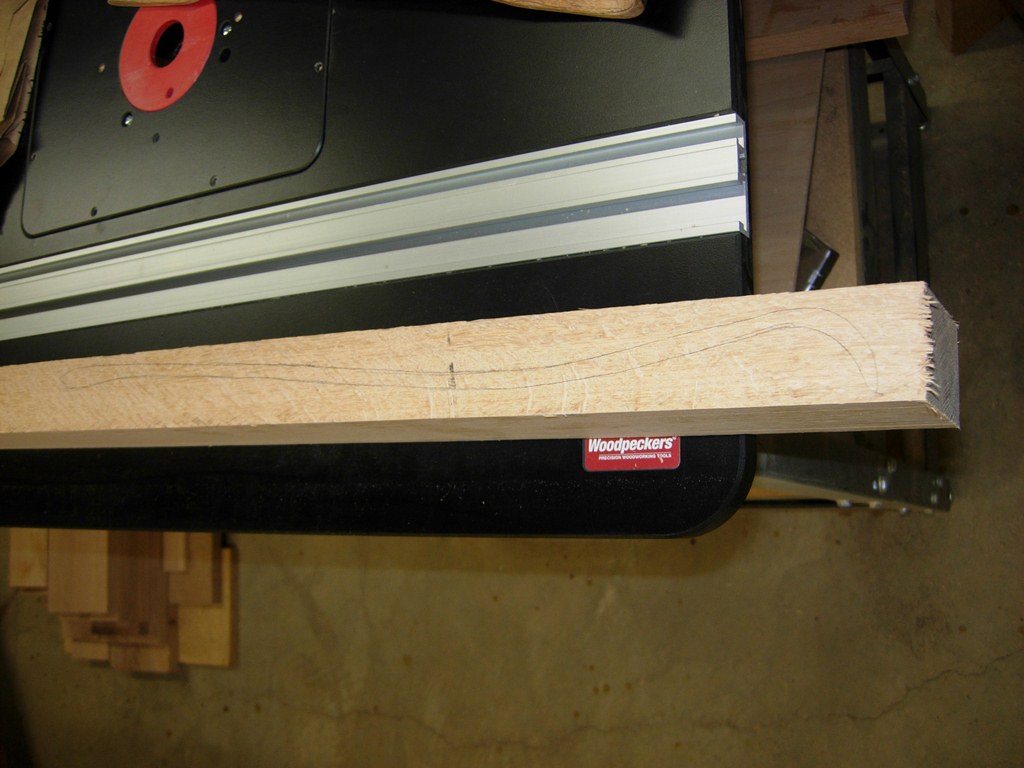

Laying out the new one

Laying out the new one

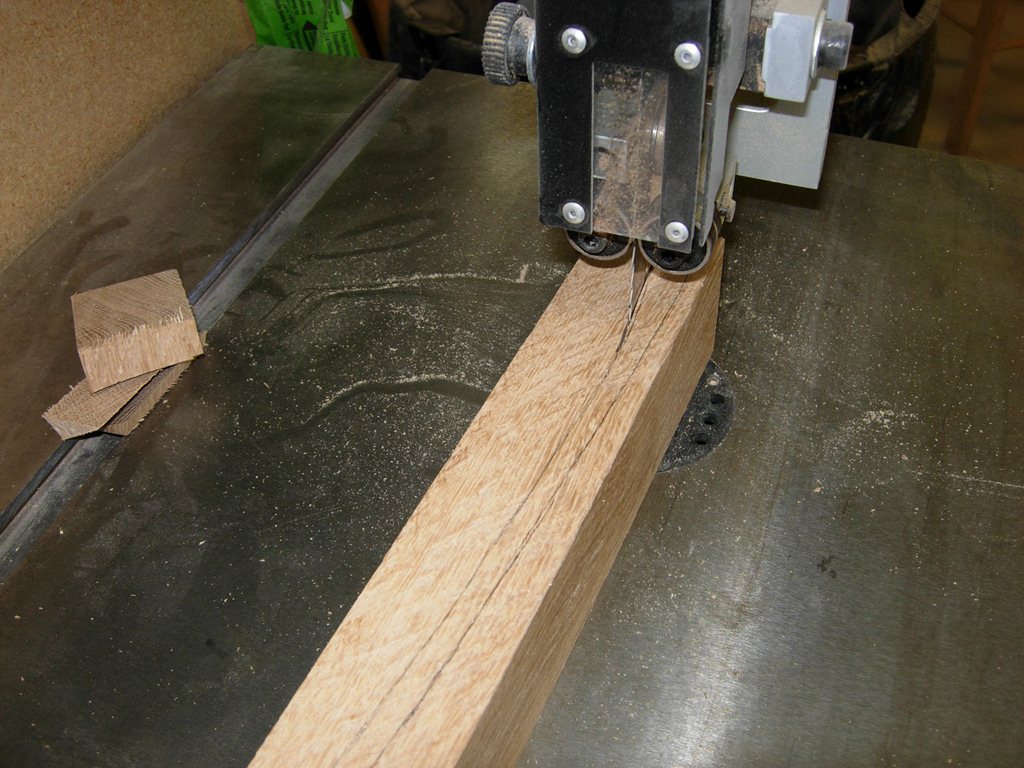

cutting it out

cutting it out

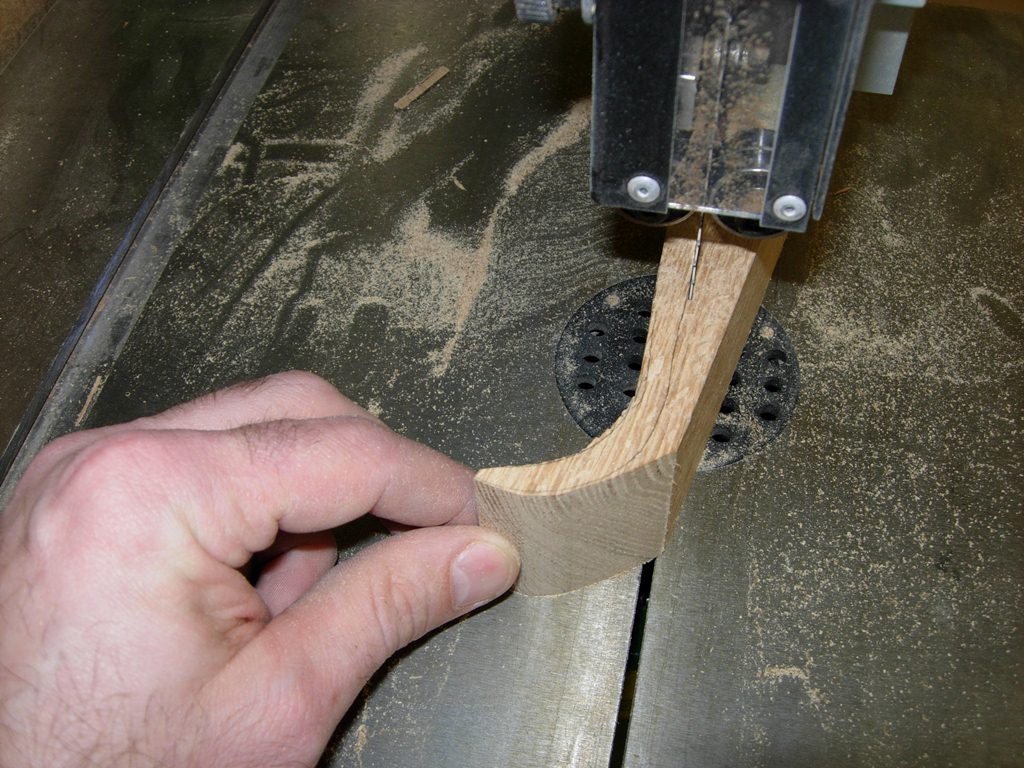

The last cut

The last cut

Smoothing it out

Smoothing it out

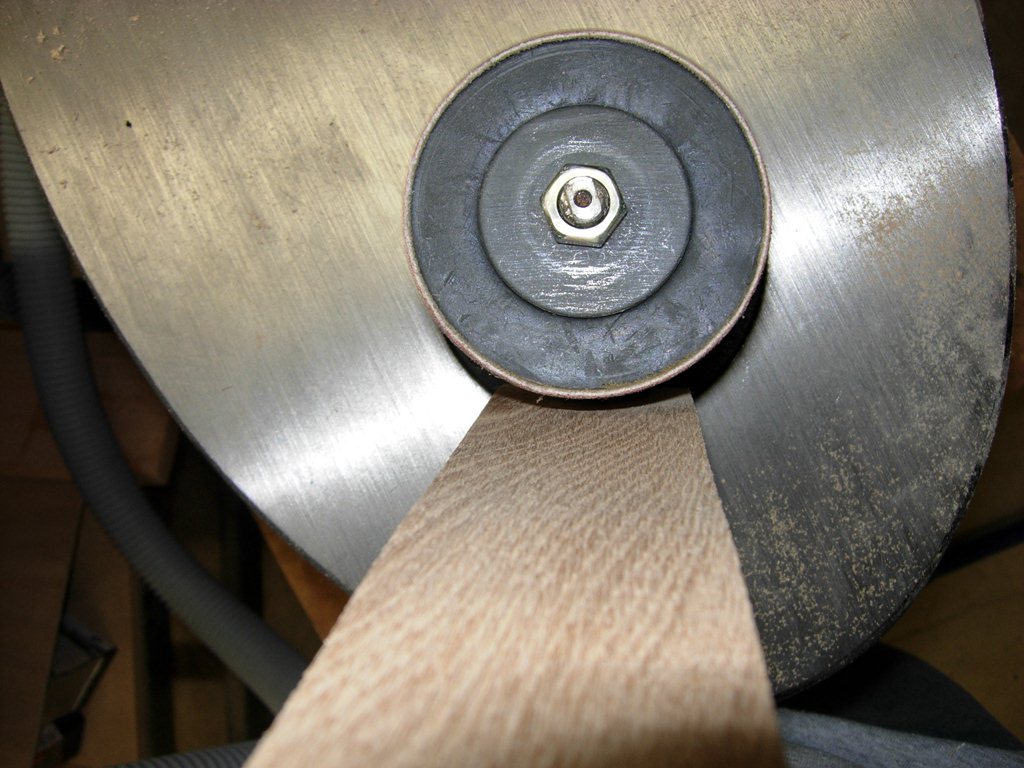

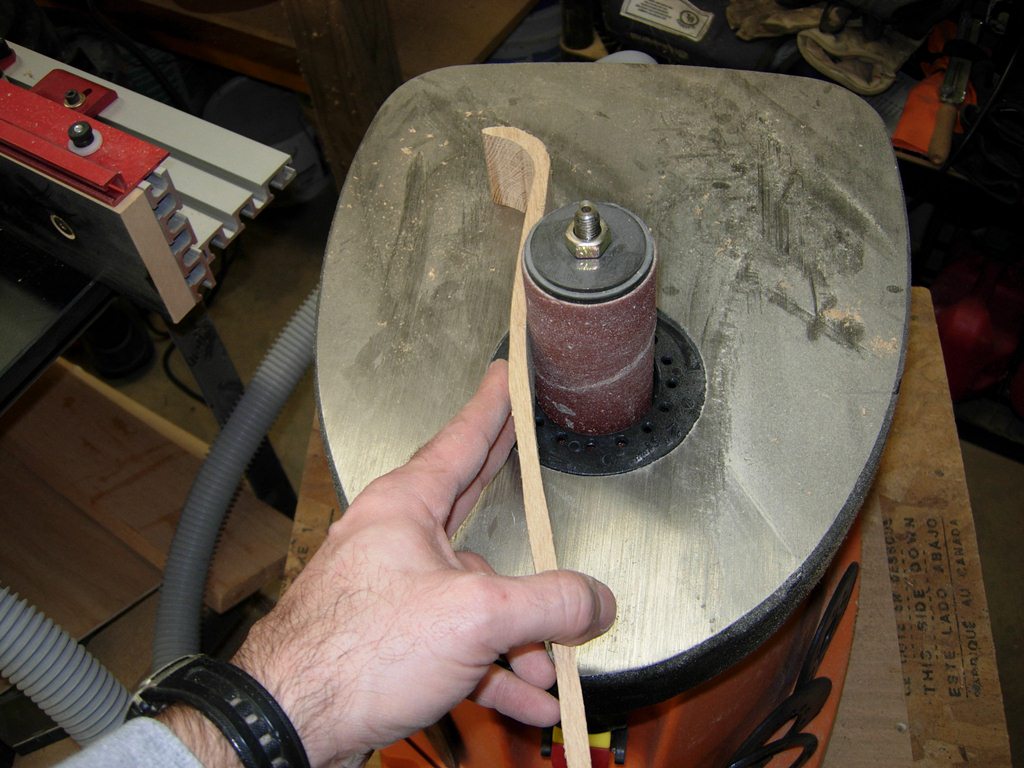

Shaping the curve

Shaping the curve

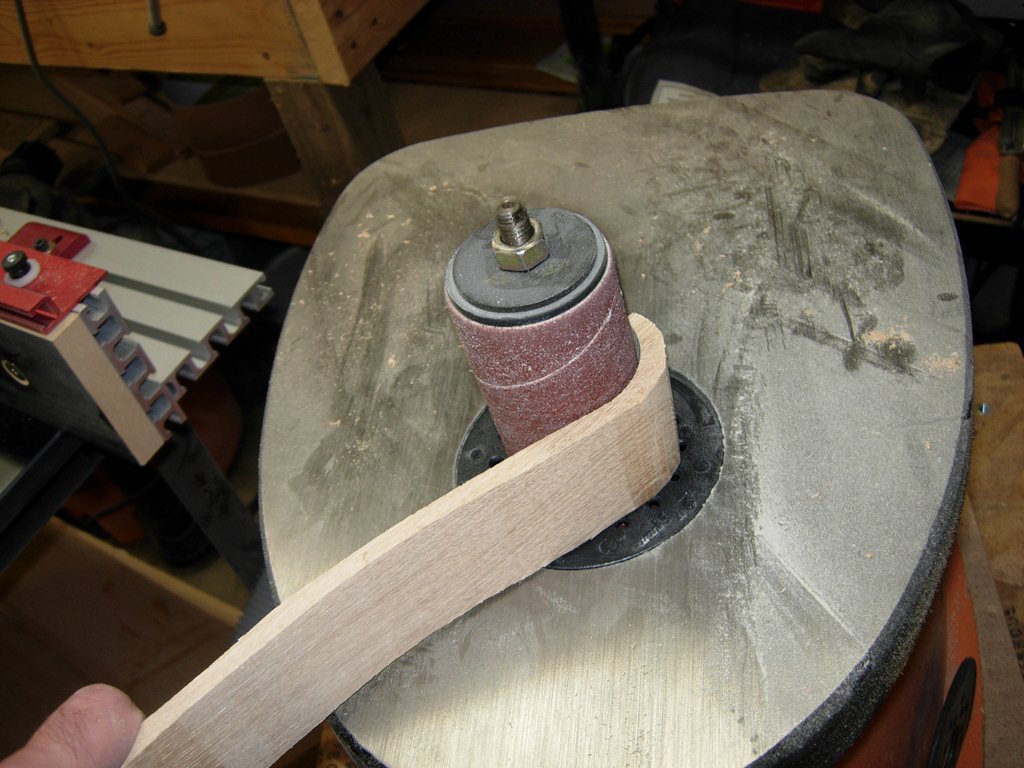

Sanding in the horn's curve

Sanding in the horn’s curve

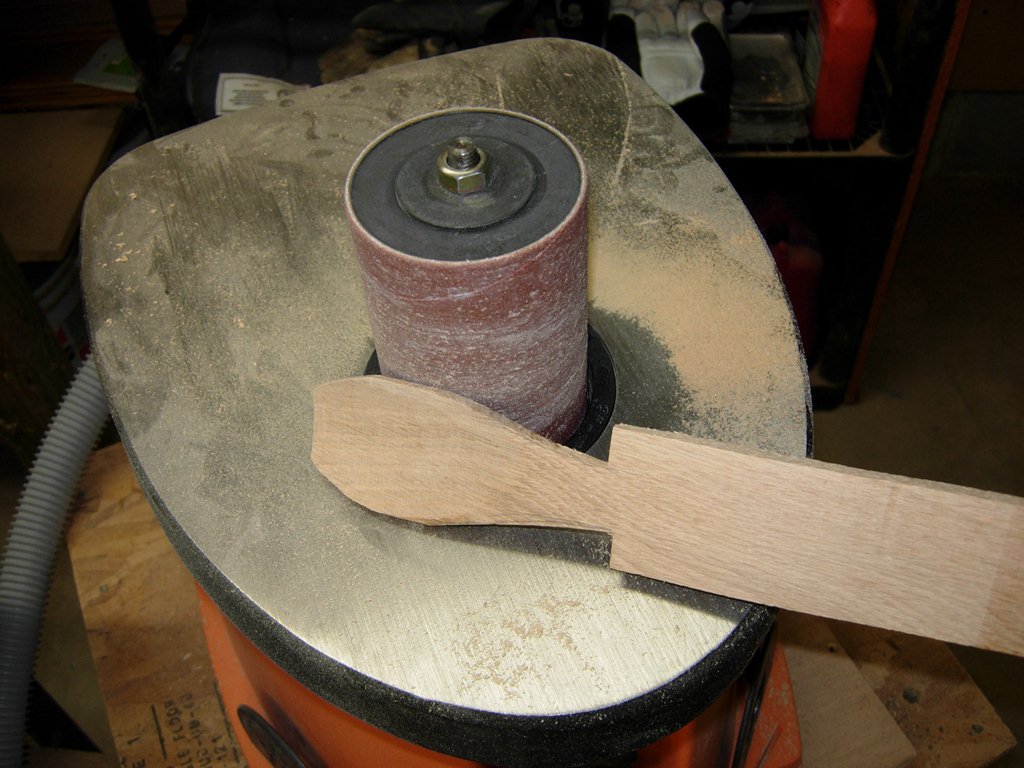

Shaping the end

Shaping the end

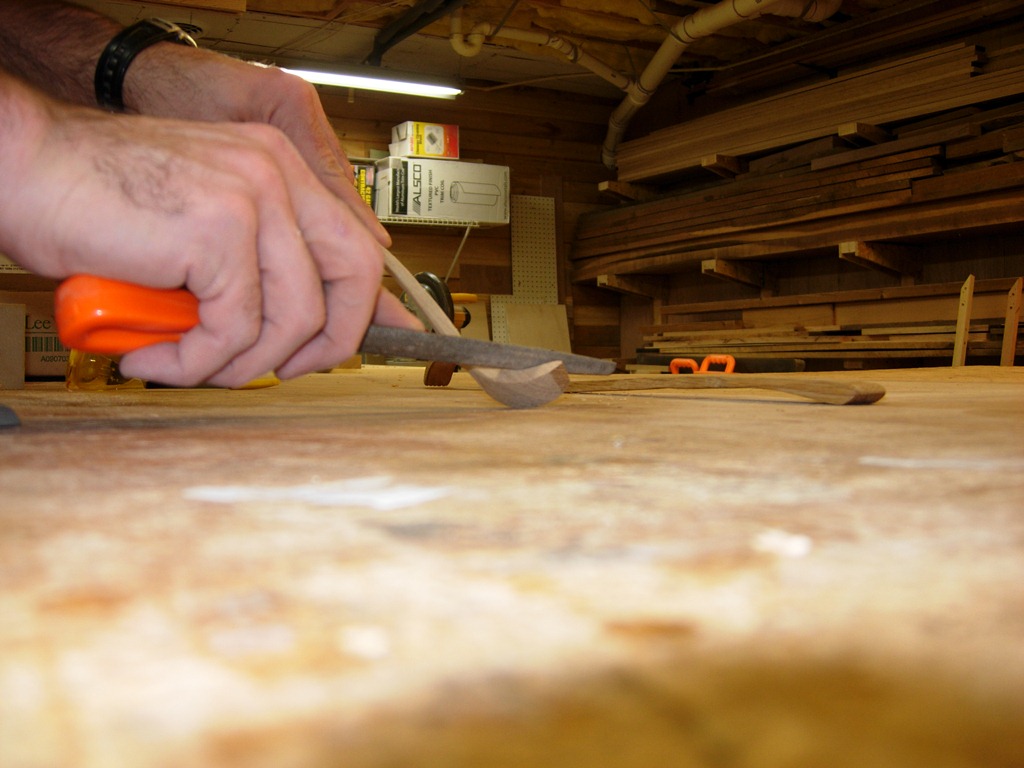

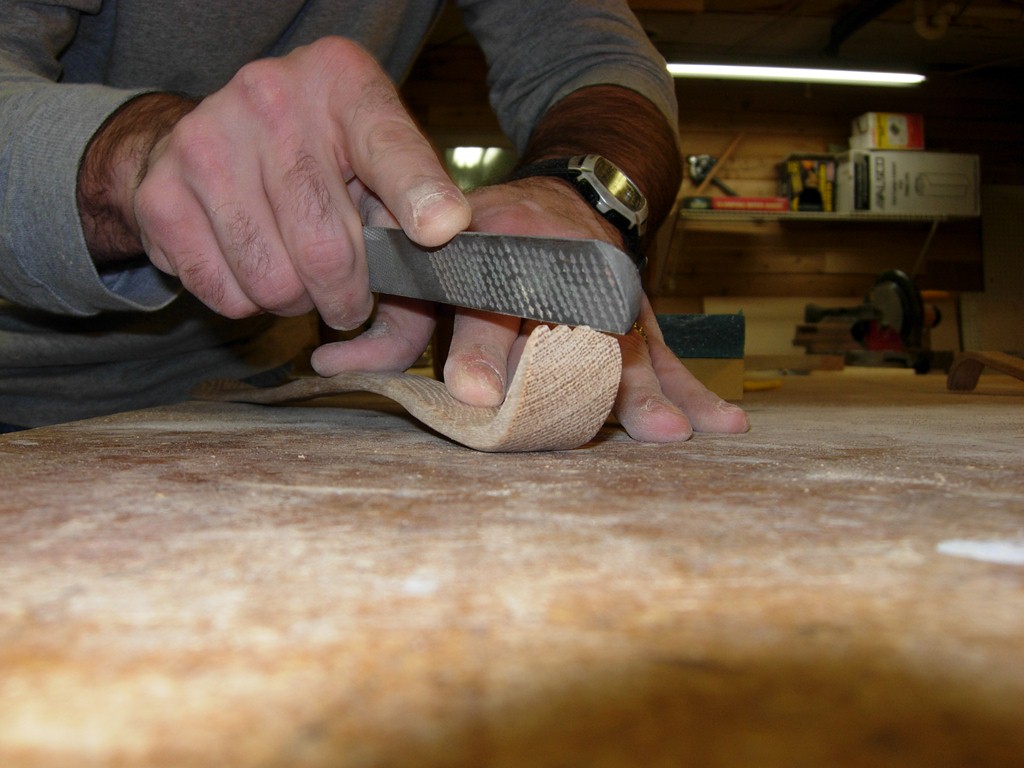

Filing off the sharp edges

Filing off the sharp edges

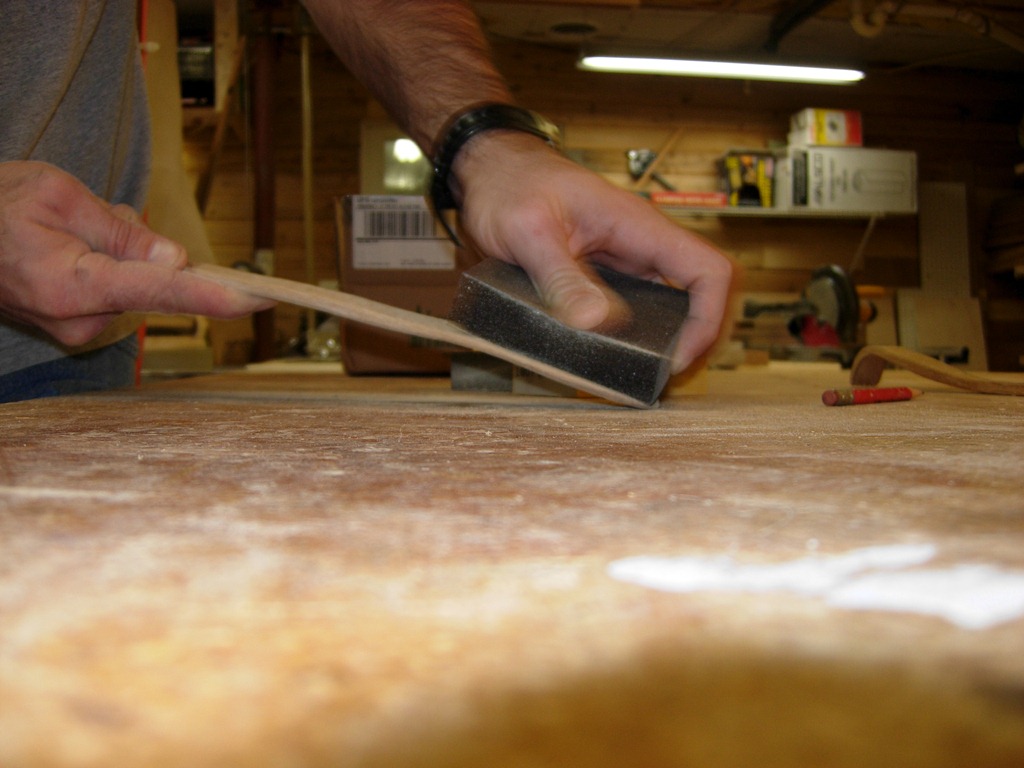

Finish sanding

Finish sanding

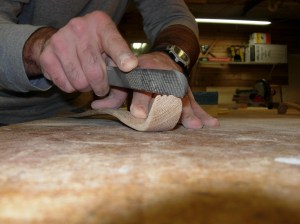

Filing the teeth

Filing the teeth

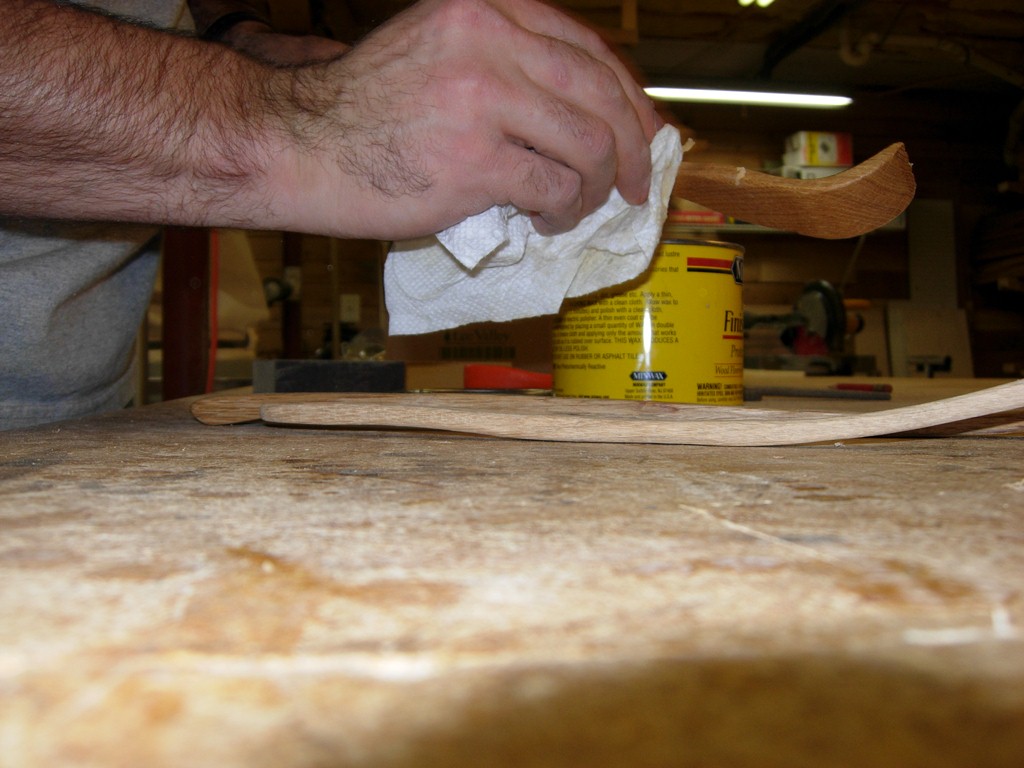

A little paste wax

A little paste wax

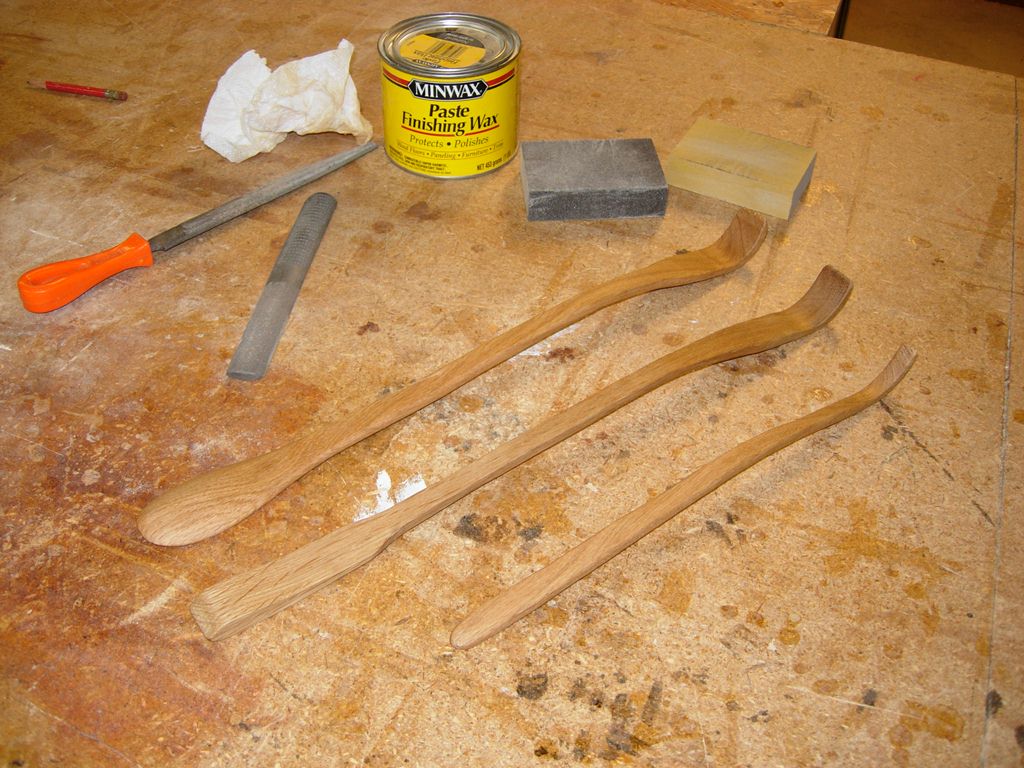

The finished products

The finished products
