Turkey fan mount day-1

I started another project last night. The other two projects are waiting on hardware, so I started one more. I have a co-worker that hunts and likes to mount trophies. He asked me if I could make a mount for a turkey fan and beard. Yes, apparently some turkeys grow a beard, usually the males. I attached the pattern that I designed to meet his specs. It is a simple design, there is a large back piece that the fan mounts to, then a spacer with a notch for the beard, then a front plate to cover all the unattractive bits of the feathers. I rooted around my scrap pile for some walnut and came up with this ugly piece of sappy wood that was peeling badly. I planed it down 1/4″ till I got past all the peeling, then cleaned up the edges on the table saw. Next I cut that board in half so I had a front piece to match the visible portion of the back. I planed down another 4″ wide piece of scrap to join to it so I could make the back tall enough to support the fan. A 3/4″ x 2″ wide piece of scrap would act as a spacer. I cut the beard notch into the spacer and traced the bottom curve onto it. This will enable me to cut that curve with the face side down when it is glued up. With that done, I glued up the back piece and the front/spacer assembly. Hopefully I will be able to finish the project tonight if I get an hour or two in the shop. If you find the plans useful, please leave a comment and let me know how yours turned out.

turkey fan mount.PDF

This seems to be a popular post. Please leave me a comment if you found these plans helpful.

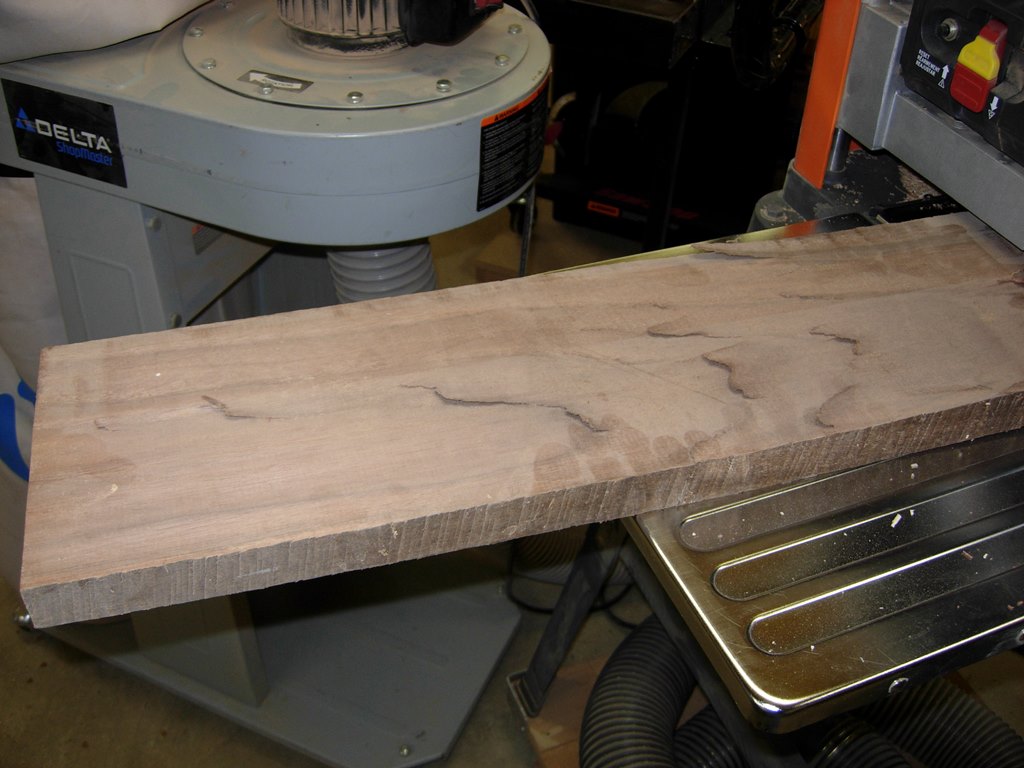

Sappy piece of scrap

Sappy piece of scrap

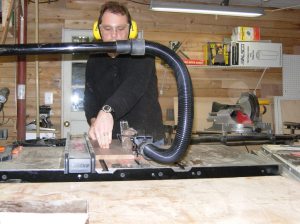

Cutting the edges

Cutting the edges

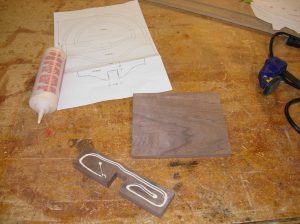

Notched spacer

Notched spacer

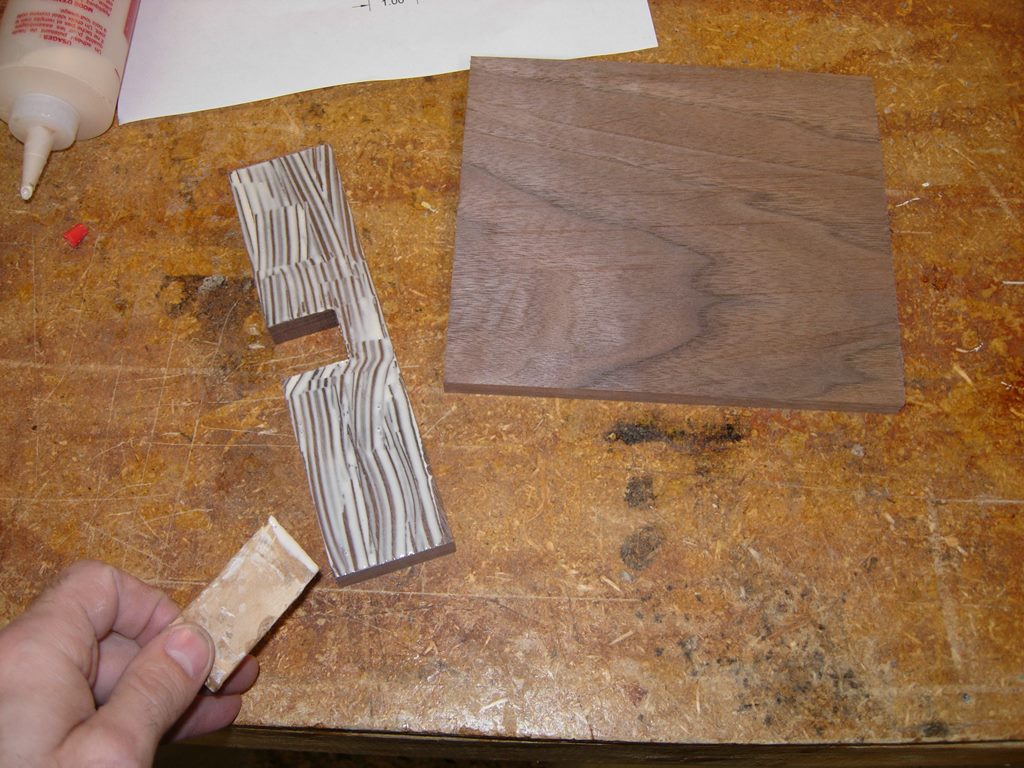

Spreading the glue evenly

Spreading the glue evenly

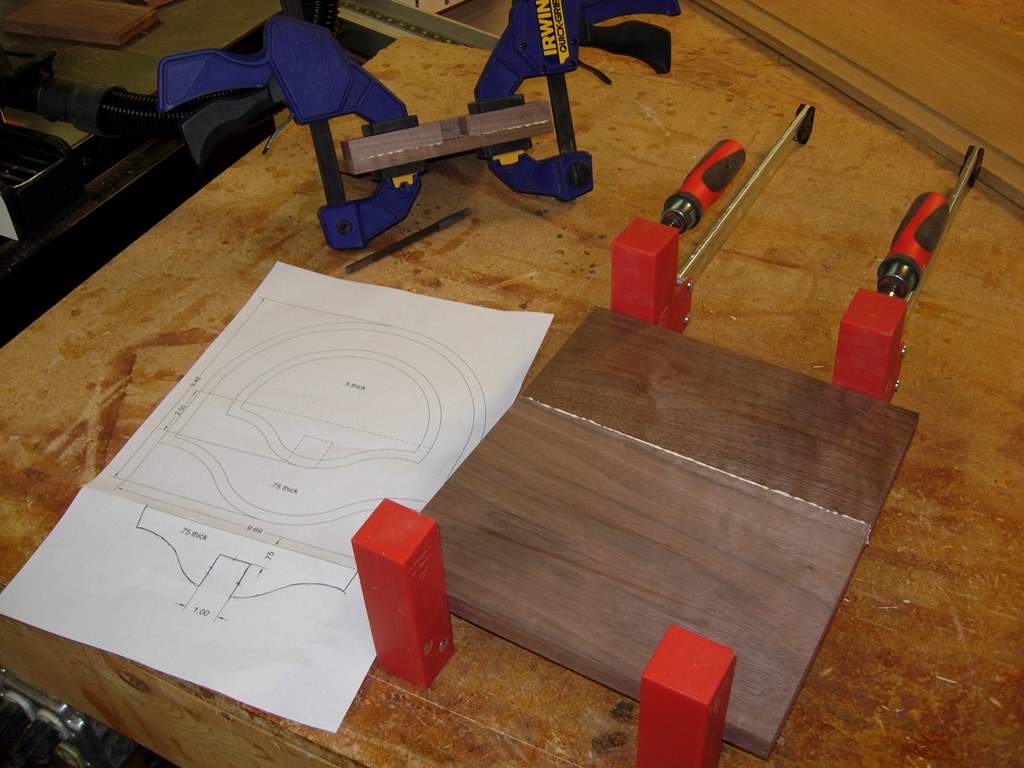

Glue-up

Glue-up

4 comments on “Turkey fan mount day-1

  1. drew
    October 22, 2013

    i searched the internet for a long time looking for a blue print and you are the only person that seamed to have one thanks a bunch

    • Lwroten
      October 23, 2013

      I am glad you found it useful. Let me know how yours turns out.

  2. Nate
    December 9, 2015

    How did you get the beard to stay in the notch? Glue?

    • Lwroten
      December 9, 2015

      Yes, glue. More specifically,my friend used a quick set epoxy.
